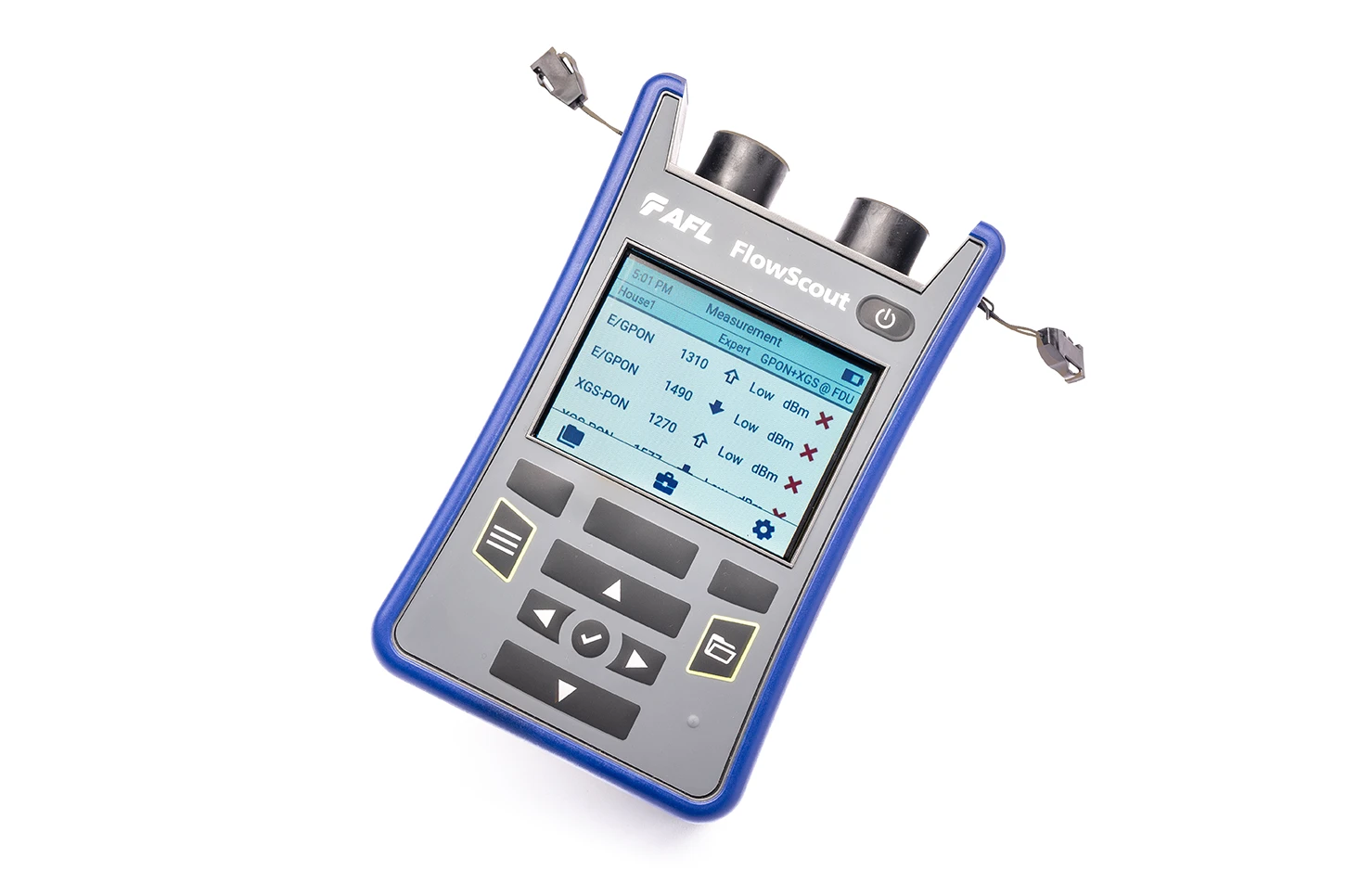

FlowScout
Through-mode PON optical power meter
This versatile tool puts powerful features in the hands of technicians who need to identify, measure, and qualify downstream and upstream signal levels in FTTx PON networks.
Designed for all.
Optical loss testing is instantaneous and intuitive with the FlowScout - no matter your level of experience.
AFL’s FlowScout Through-mode PON power meter is the perfect tool for technicians responsible for activating and maintaining networks carrying a mix of GPON/EPON, video, and next gen PON (XG/XGS-PON, 10GEPON) wavelengths.
FlowScout differentiates itself from other through-mode PON Power Meters because it doesn’t require any setup. It couldn’t be simpler to use – just plug in the fibre being tested and the results appear on the large colour touchscreen in a matter of seconds. The unit’s storage and reporting options make it easy to verify and document test results from the field.
With its rugged design, the FlowScout PON power meter is tailored for outdoor use, so it’s at home in tough environments; knocks, dirt and moisture are no problem for FlowScout. Its user-friendly nature extends to the fact that it’s intuitive to use, which means little to no training is required, making it exceptionally accessible for customers.
Applications
- Detect and measure PON upstream and downstream signals
- Activate PONs
- Verify and troubleshoot BPON, EPON, GPON, 10G-EPON, XG-PON, XGS-PON and Video
- Evaluate PON power level Pass/Fail based on limits
Key Features
This is what makes FlowScout powerful, easy and well suited to meeting the demands of an outside plant environment.
Effortless PON validation
FlowScout simplifies PON validation by identifying, measuring, and qualifying signal levels. Ensure hassle-free service activation, test PON traffic in both residential and commercial areas, and easily identify and verify existing and new PON wavelengths.
Easy and quick

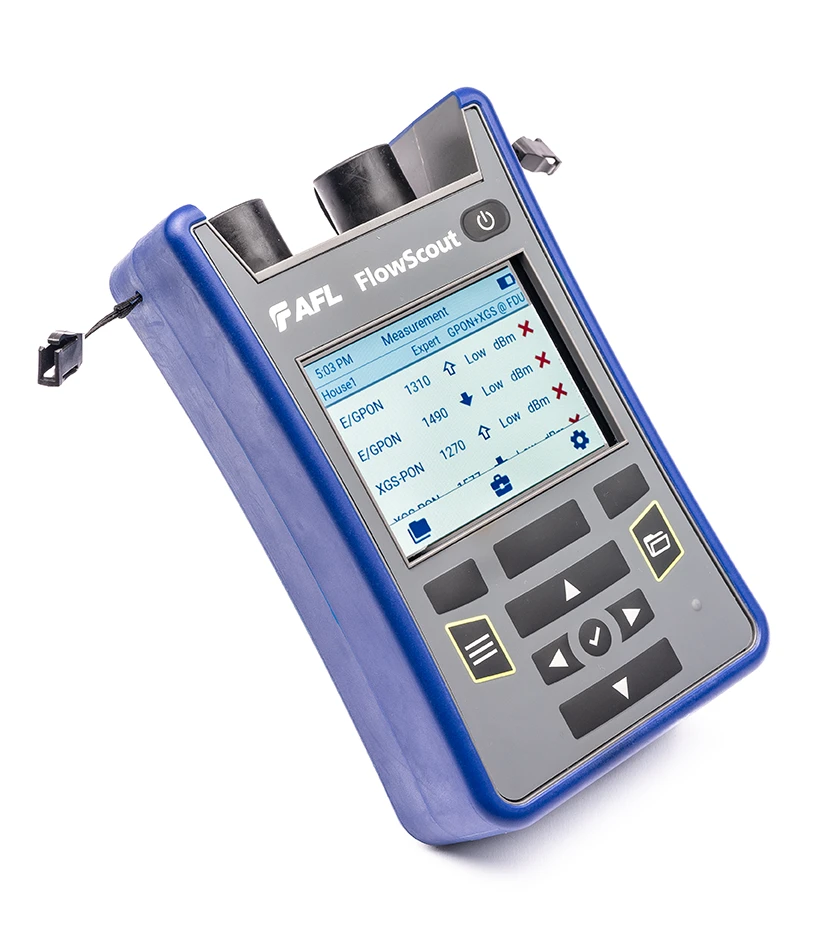

Because FlowScout independently measures the power of each wavelength without the need for complex setup, it makes testing more straightforward. This is a through-mode PON power meter that allows professionals to get to work quickly thanks to user-friendly design that requires minimal training. It is designed for efficiency, providing rapid test results display within three seconds. In bright outdoor conditions, the large colour touchscreen is easy to read. Thanks to FlowScout’s focus on practicality and usability, it is the ideal choice for novice and skilled technicians alike.
Flexible, durable and efficient

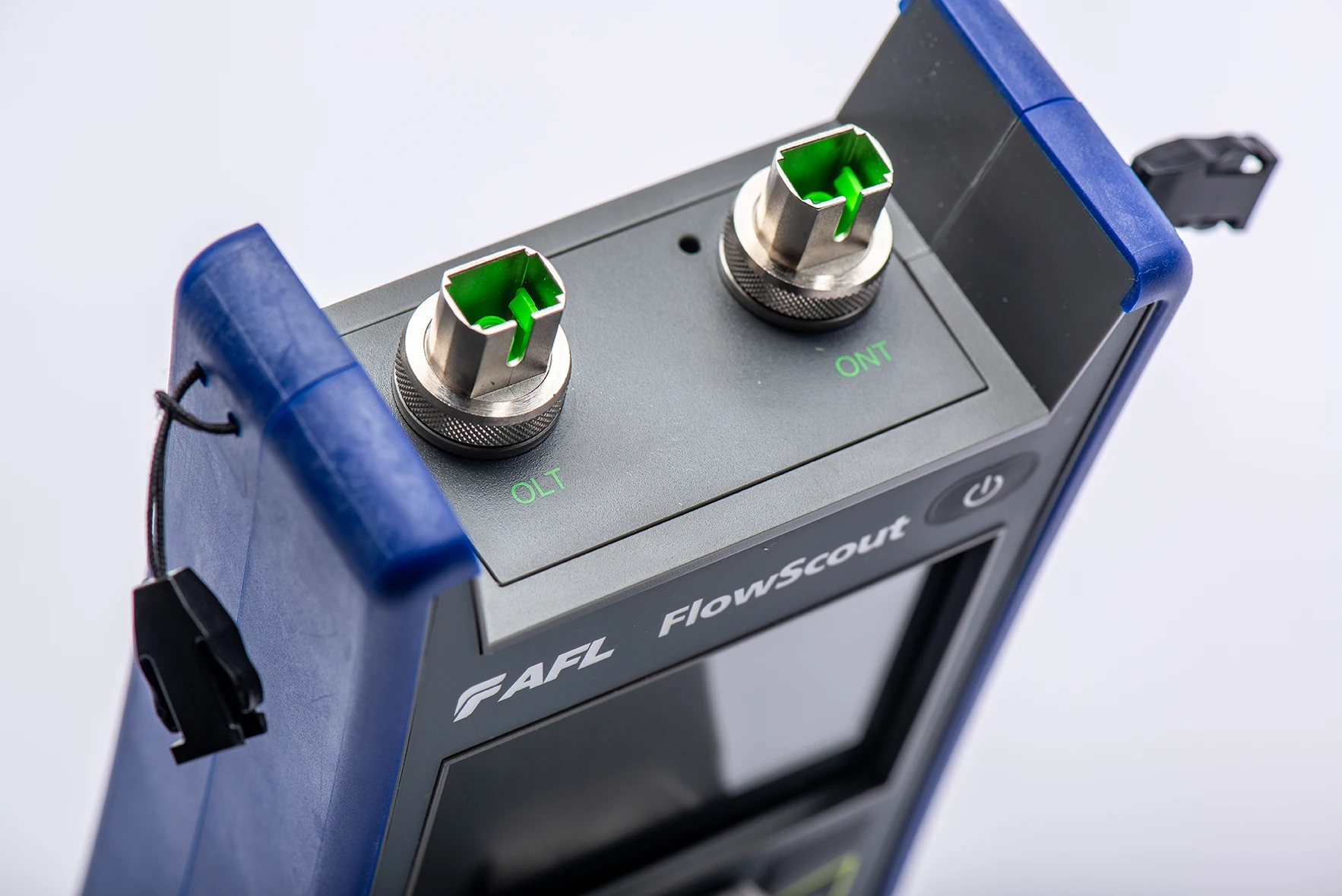

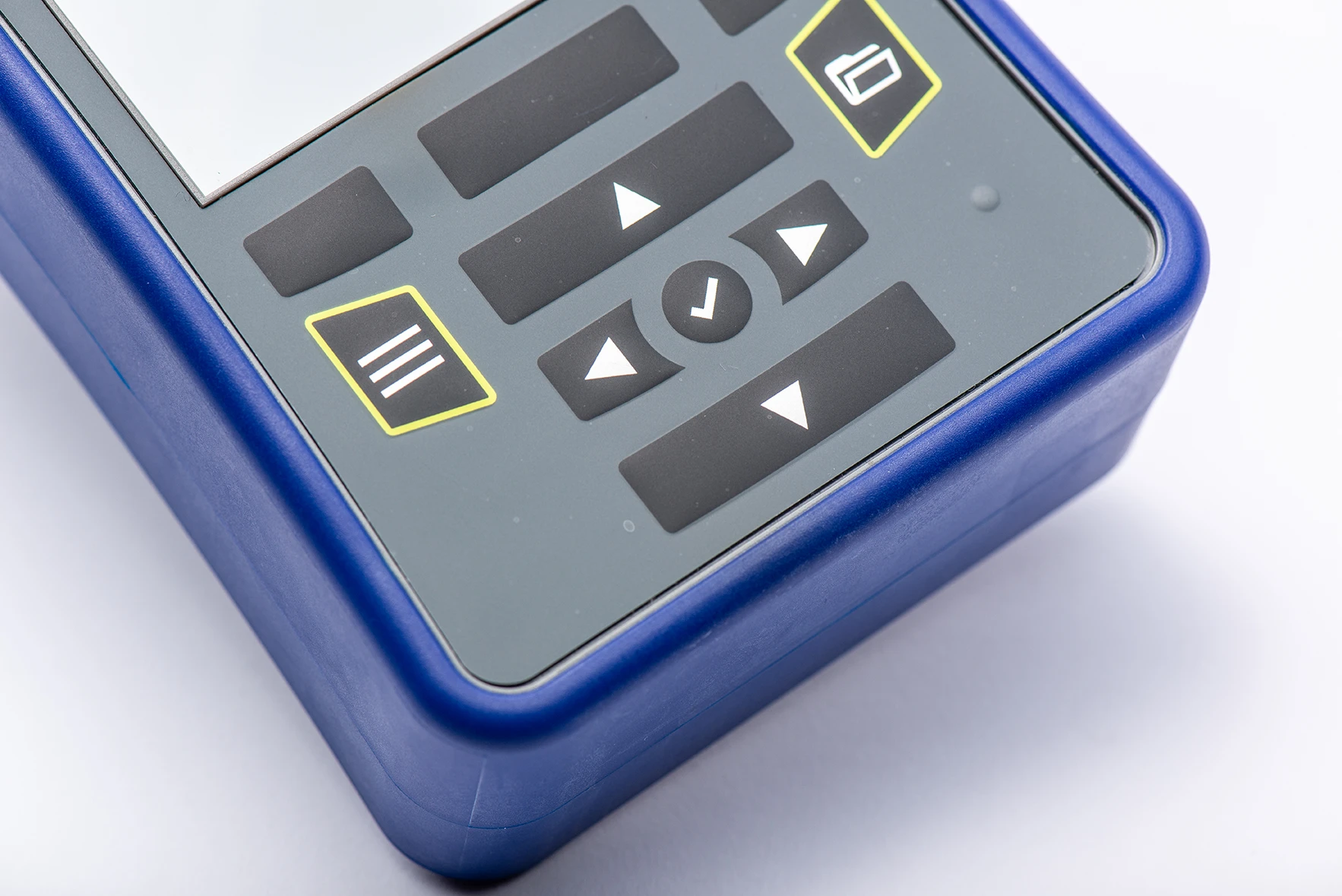

A range of field-swappable output adapters support multiple connector styles and enable access for easy cleaning. FlowScout is built for the rigours of work and its portable, durable design easily withstands a one-metre drop. The splash resistant controls are easy to use, even with gloves on. FlowScout offers extended run time thanks to its rechargeable, Li-Polymer battery and it features an auto-off function to conserve power.
Sharing and storing test results
The file management system built into FlowScout PON Power Meter simplifies the task of organizing test results into various files. Technicians can conveniently transfer these files to a PC using a USB connection for further analysis, generating reports, and printing. Additionally, it includes a QR code feature, making it easy to collect and transfer test data through compatible smart devices, providing added convenience and efficiency in data management.
Technical specification
FlowScout
Through-mode PON optical power meter
UPSTREAM MEASUREMENT RANGE
1270nm: -28 to +13dBm
1310nm: -28 to +13dBm
DOWNSTREAM MEASUREMENT RANGE
1490nm: -50 to +13dBm
1550nm: -35 to +26dBm
1577nm: -50 to +17dBm
ACCURACY
±0.50dB at 0dBm
RESOLUTION
0.01dB
INSERTION LOSS
1.7dB typical
INLINE ORL
55dB typical
MEASUREMENT UNITS
dBm, µW
POWER
Rechargeable Li-Polymer battery

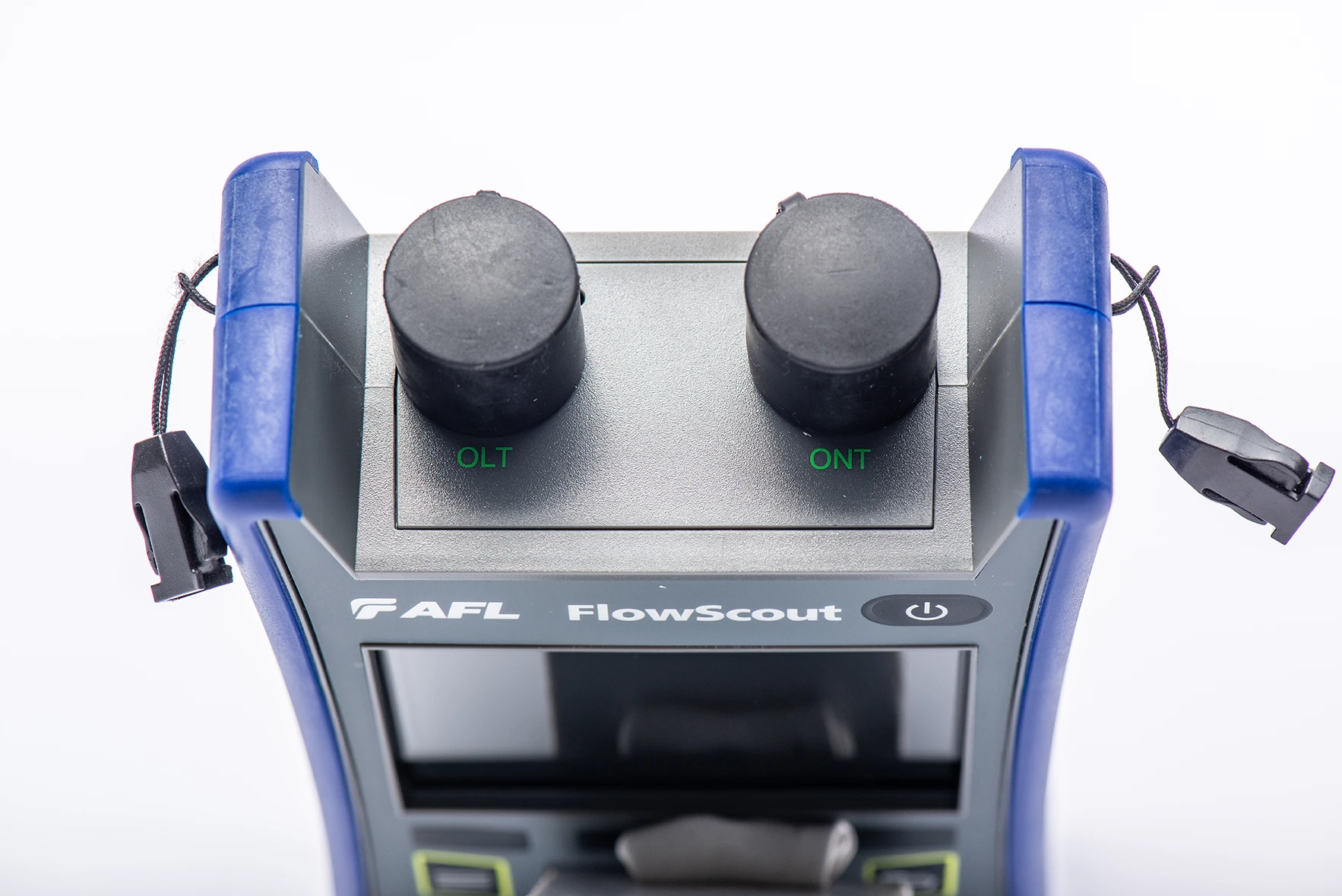

ADAPTOR CAPS
SC APC standard, LC APC available
BATTERY LIFE
>8 hours
RECHARGE TIME
~4 hours
OPERATING TEMPERATURE
-10°C to 50°C, 95% RH (non-condensing)
STORAGE TEMPERATURE
-20°C to 60°C, 95% RH (non-condensing)
SIZE
17.1cm [H] x 10.4cm [W] x 4.6cm [D]
WEIGHT
0.59kg
NOTES
All specifications valid at 25°C unless otherwise specified. [1] Accuracy was measured at 25°C and -10 dBm per N.I.S.T. standards.
