CT114

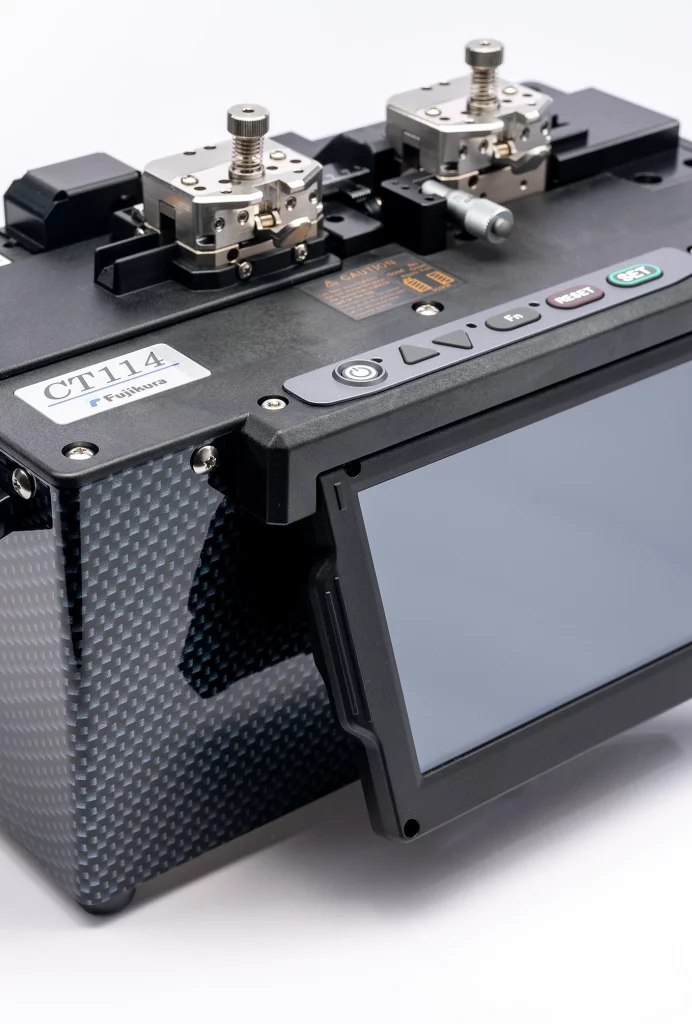

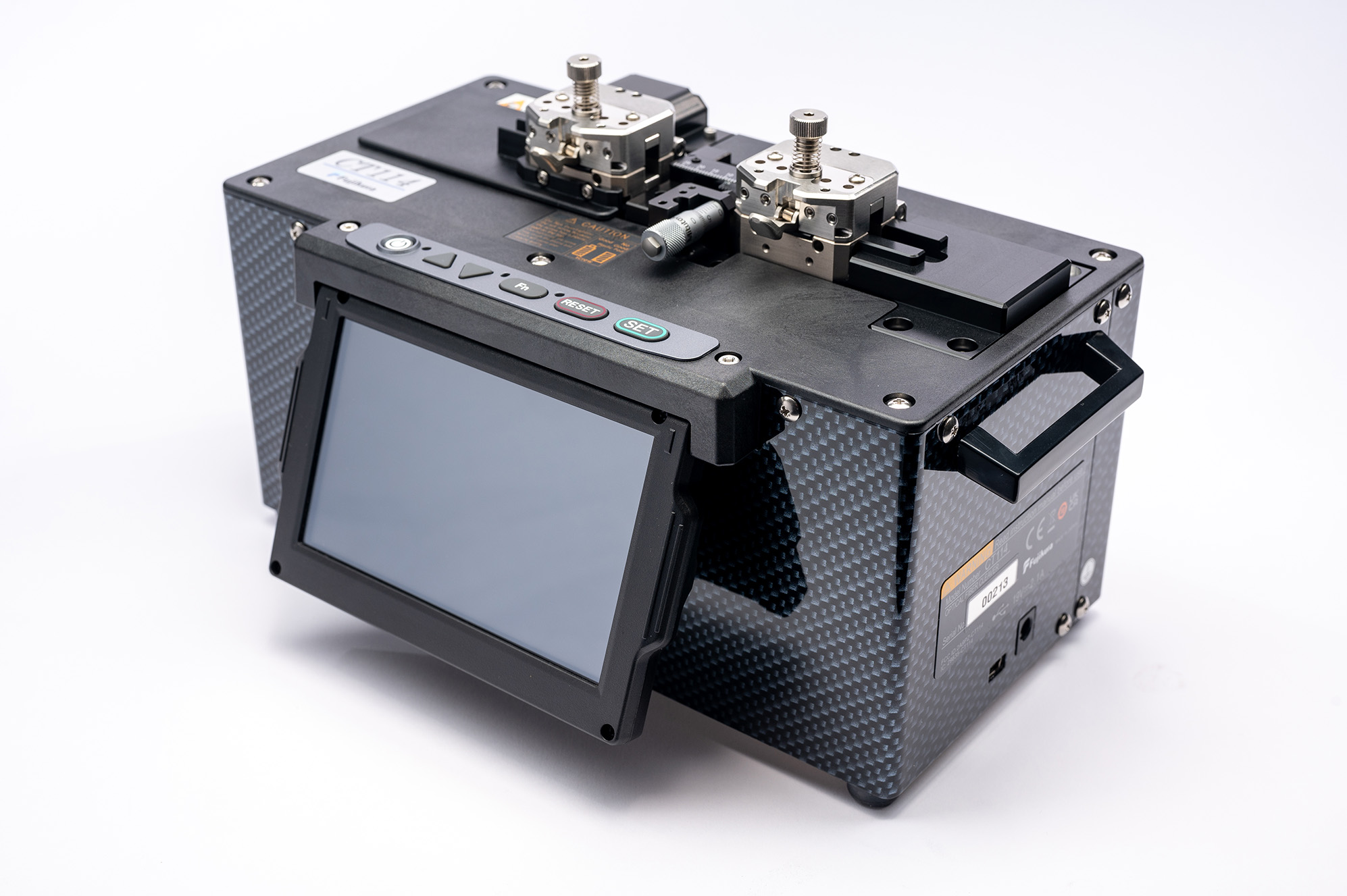

Large diameter silica fibre cleaver
For use on silica fibres with a cladding size of up to 660µm.
Achieving consistently low cleave angles for diverse fibre types.
Our high-quality, large diameter cleavers are built to achieve low cleave angles with pristine end-faces for a vast array of fibre types.
These cleavers are heavily utilised in fibre preparation for fusion splicing of standard data communication fibres, octagonal or round large diameter fibres (LDF), polarisation maintaining fibres, photonic crystal fibres and even component manufacturing with capillary tubes, ball lenses and end caps.
Applications
The CT114 benefits a variety of specialty fibre optic industries including universities, R&D optical institutes, high power laser manufacturers, photonics industries and medical applications.
Key Features
Long blade life
Blade life of approximately 200,000 cleaves with 250μm cladding fibres.
RFID technology
Fibre holders include an RFID tag - the CT114 selects the appropriate cleaving mode based on the fibre holder.

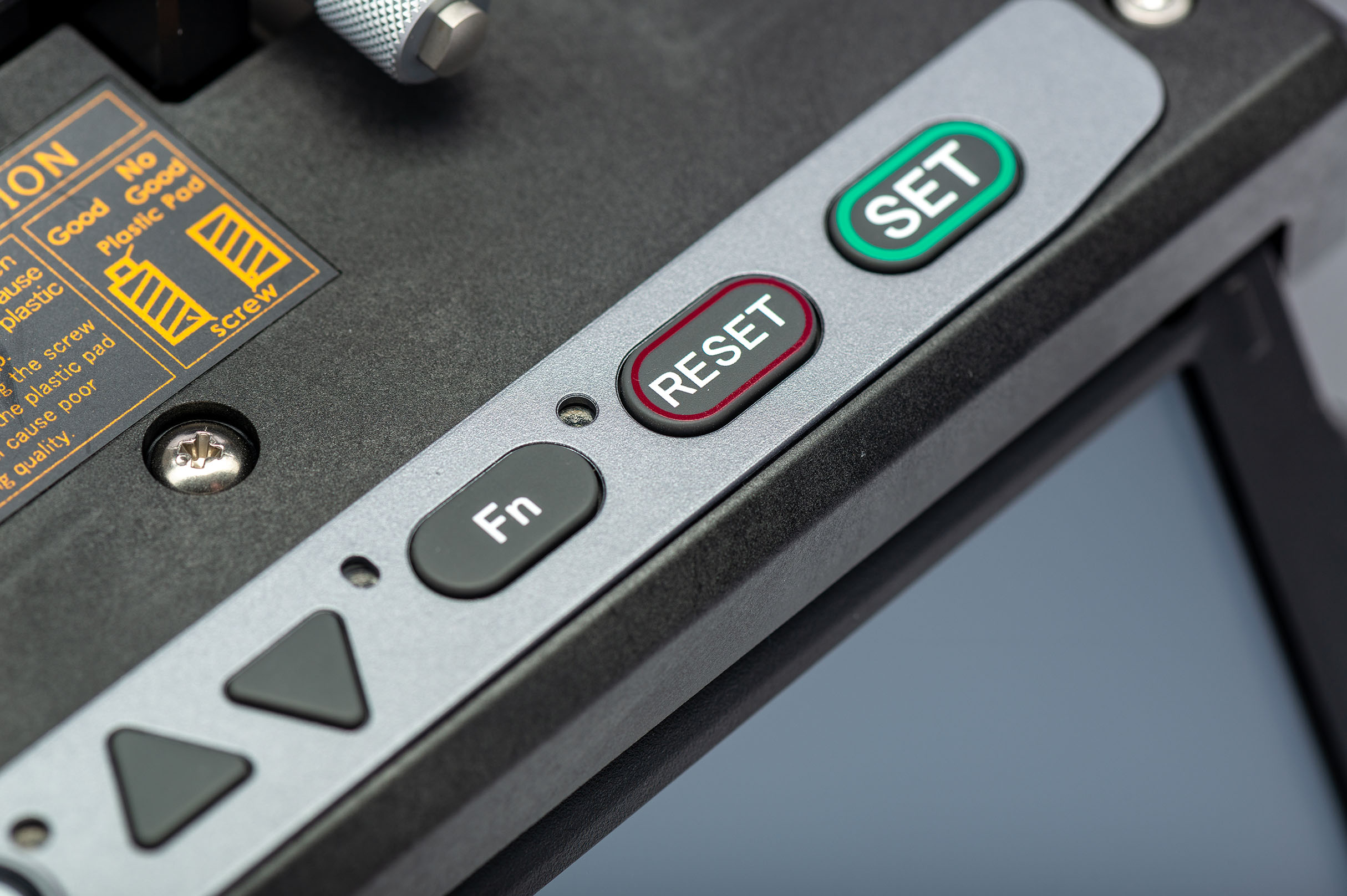

User friendly
The CT114 automatically changes its blade position and is equipped with a colour LCD touch screen monitor for easy operation.
Technical specification
CT114
Large diameter manual cleaver
FIBRE TYPE
Silica fibre
NUMBER OF FIBRES
Single-fibre
CLADDING DIAMETER
0.08mm to 0.66mm
COATING DIAMETER
0.081mm to 3.182mm

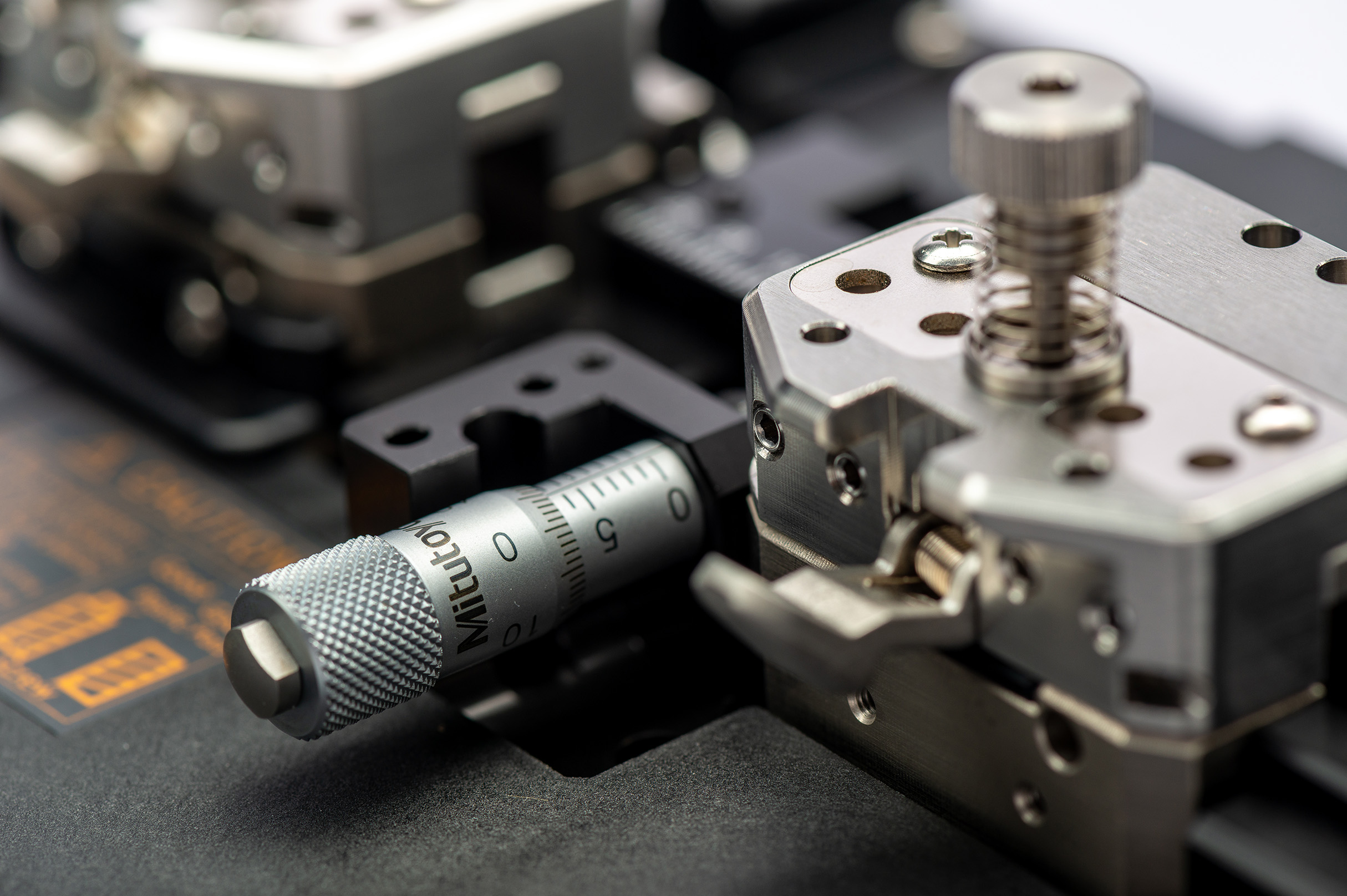

CLAMPING FORCE ADJUSTMENT [1]
Under cladding dia. 0.4mm: Adjustment with magnet
Cladding dia. 0.4mm to 0.66mm: Adjustment with magnet and screw
BACKSTOP ADJUSTMENT
Manual
TENSION RANGE SETTING [2]
0 to 3,000gf

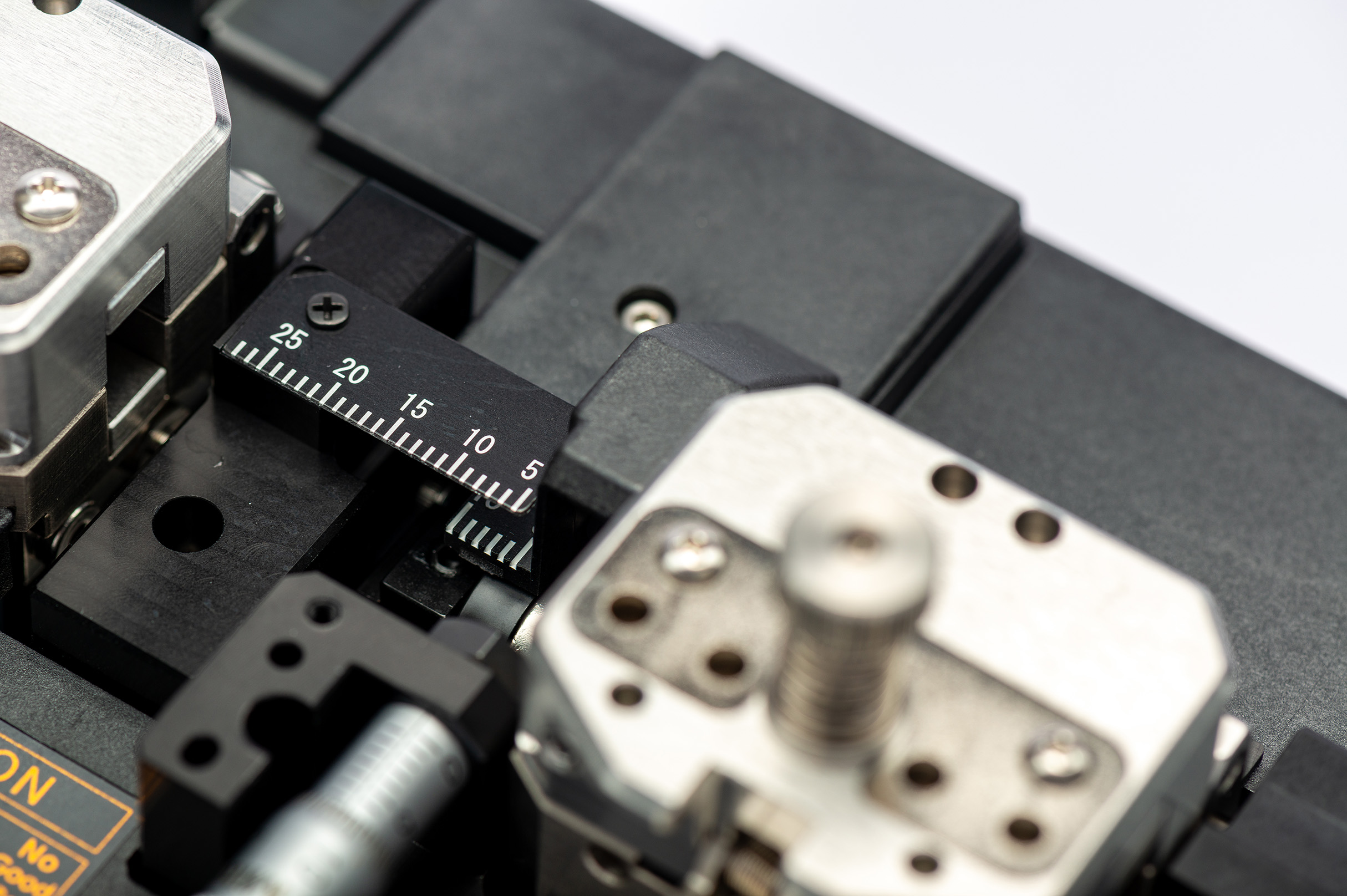

CLEAVE LENGTH SETTING RANGE [3]
30mm to 75mm
CLADDING DIAMETER 0.125mm [4]
Avg. 0.2°
CLADDING DIAMETER 0.4mm [4]
Avg. 0.3°
CLADDING DIAMETER 0.66mm [5]
Avg. 0.4°
BLADE LIFE [7]
Approx. 200,000 fibre cleaves at cladding dia. 0.250mm and 0.4mm
DIMENSIONS
240mm [W] x 133mm [D] x 142mm [H]
WEIGHT
Approx. 3.6kg without inserts and with fibre holder adapter
OPERATING TEMPERATURE
0 to 40°C
OPERATING HUMIDITY
0 to 95% TH non-condensing
STORAGE TEMPERATURE
-40 to 80°C
STORAGE HUMIDITY
0 to 95% TH non-condensing

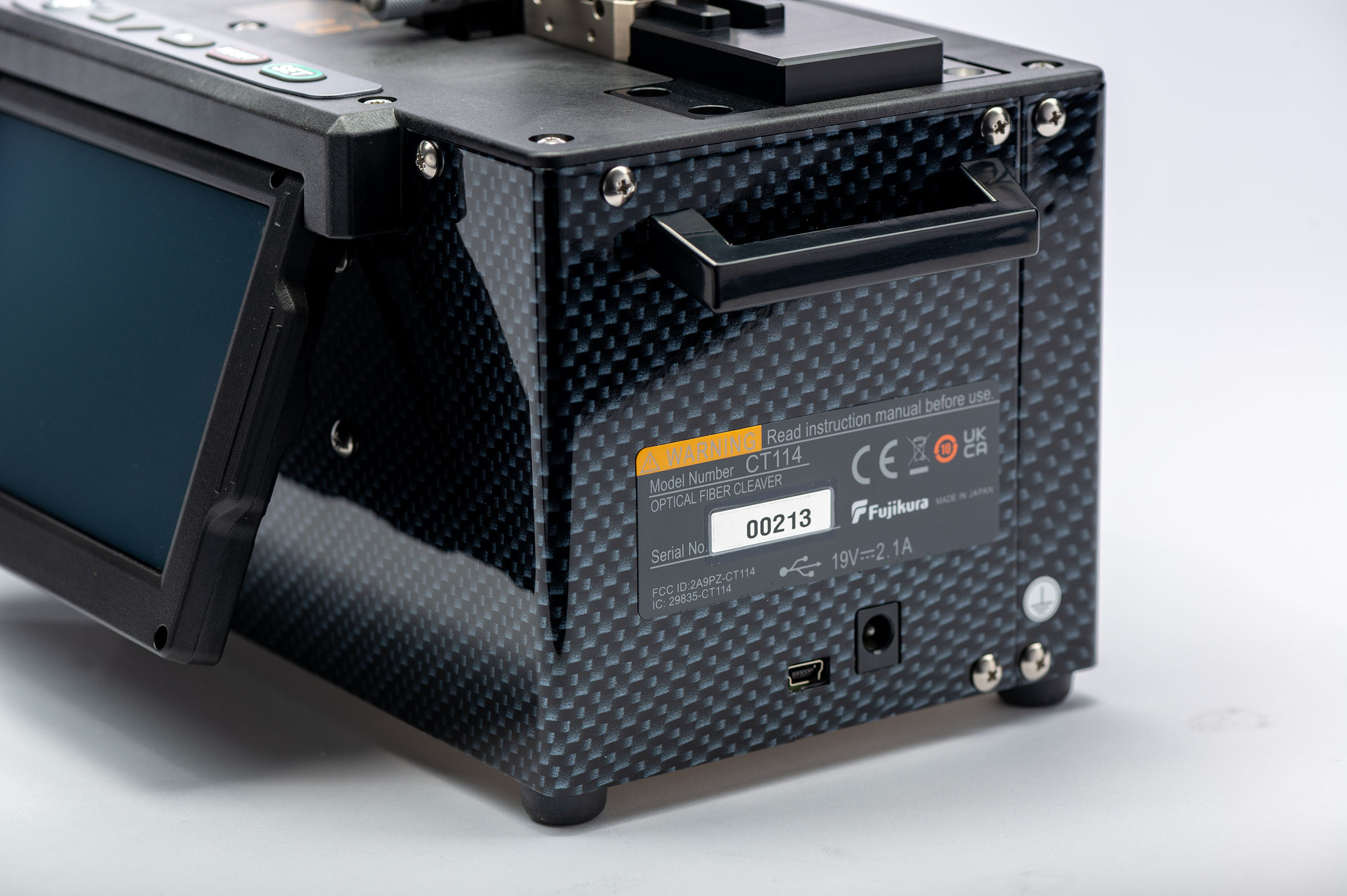

AC ADAPTER INPUT
AC100 to 240V, 50/60Hz, Max 1.5A
AC ADAPTER OUTPUT
Approx. DC19V, Max 2.1 A
DISPLAY
4.95-inch with touch screen colour TFT monitor
INTERFACE PC
USB2.0 Mini B type
INTERFACE GROUND POINT
Applicable by M3 size truss screw
WIRELESS COMMUNICATION
RFID: Compliant with ISO 15693
DATA STORAGE
Cleave mode: 100 cleave modes
Cleave result: 10000 cleaves
AUTOMATIC FUNCTIONS
Auto cleave mode select by RFID tag, auto backstop adjustment, motorised blade position change, auto tension select, auto clamping force adjustment
SOFTWARE FOR PC
Firmware update via internet, cleaving parameter upload and download
NOTES
