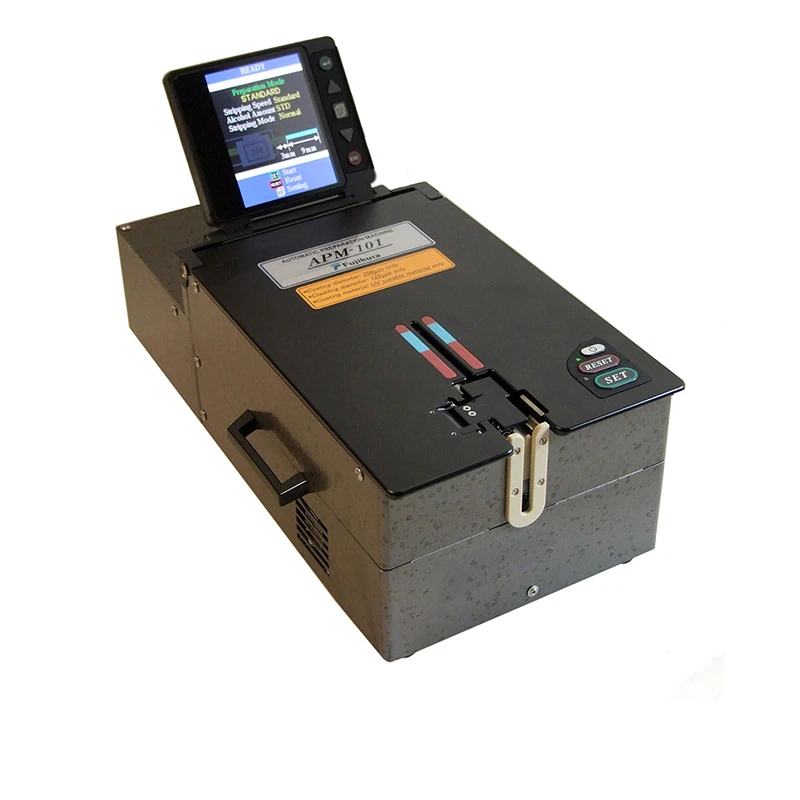

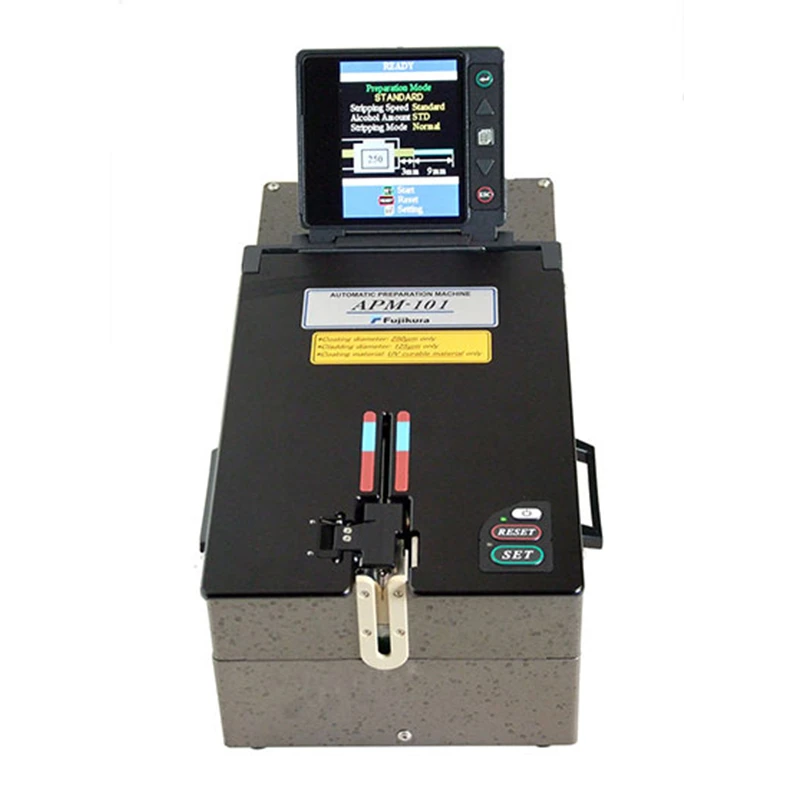

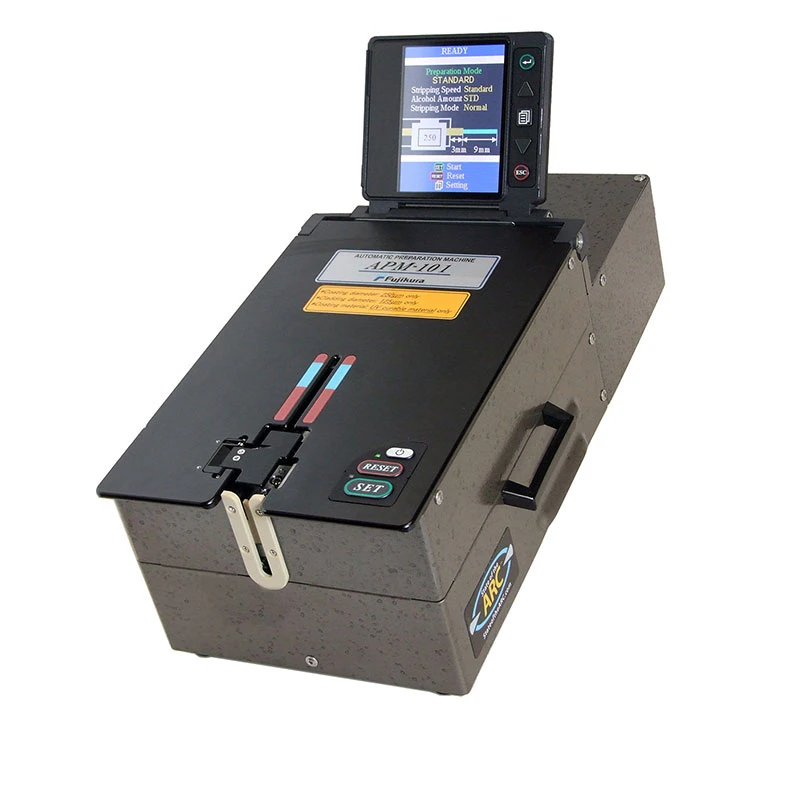

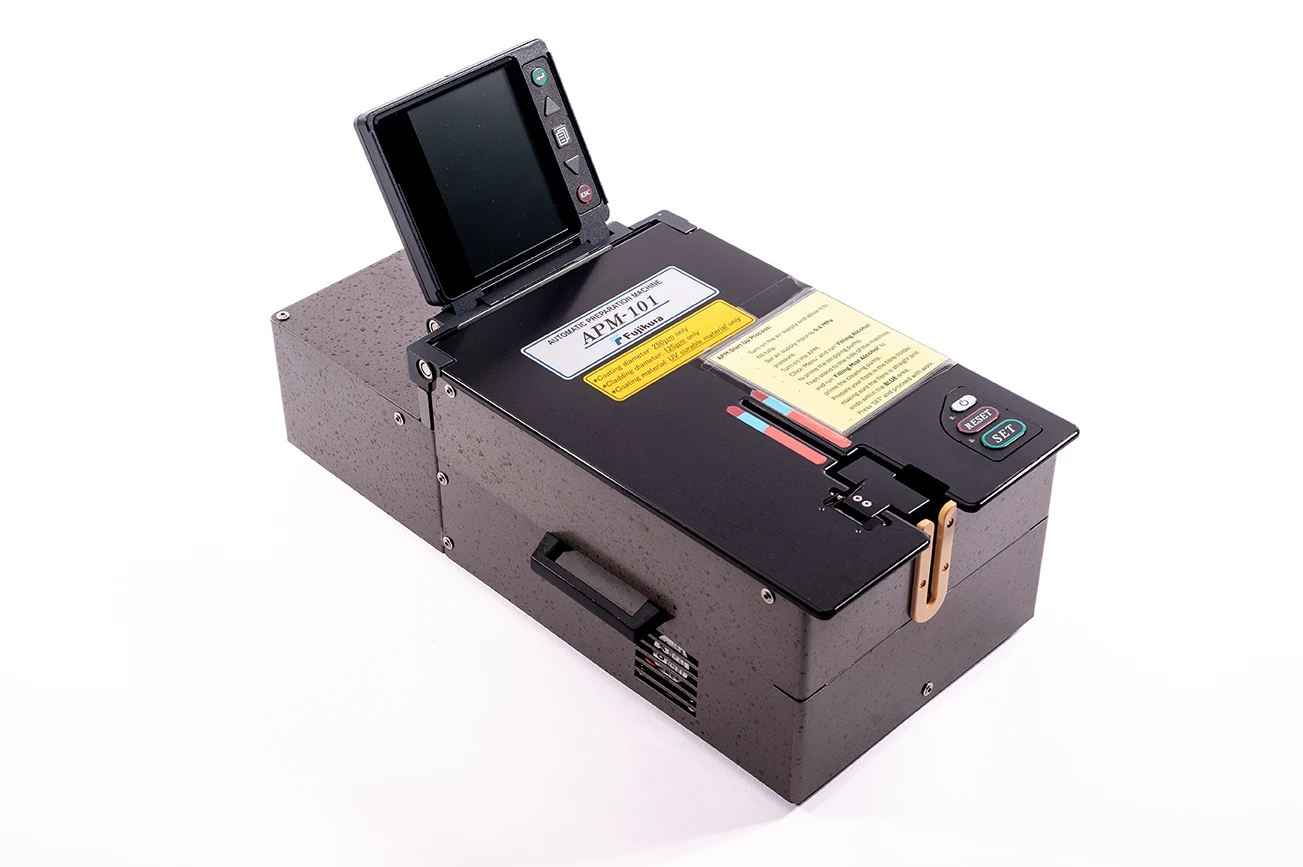

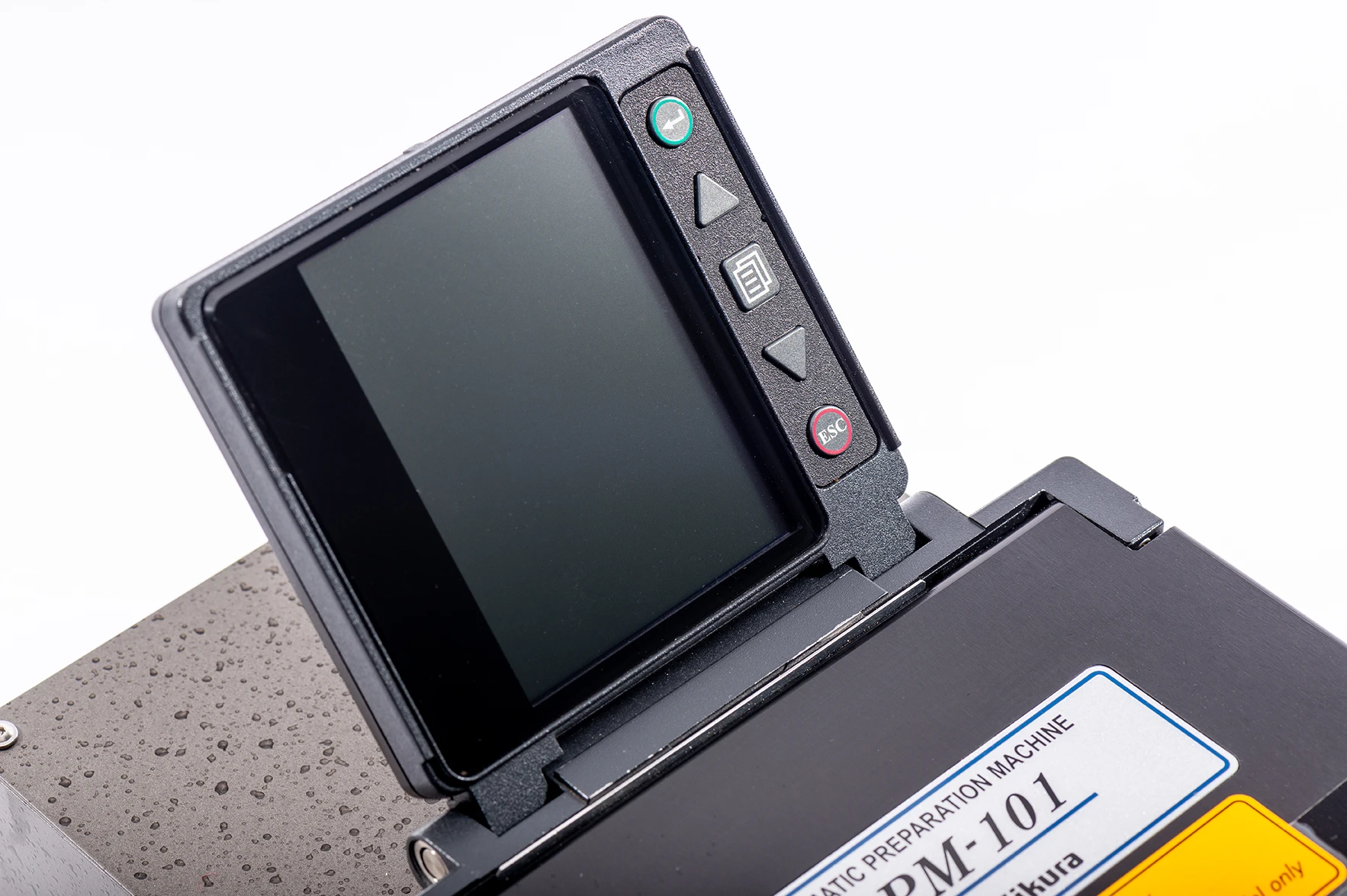

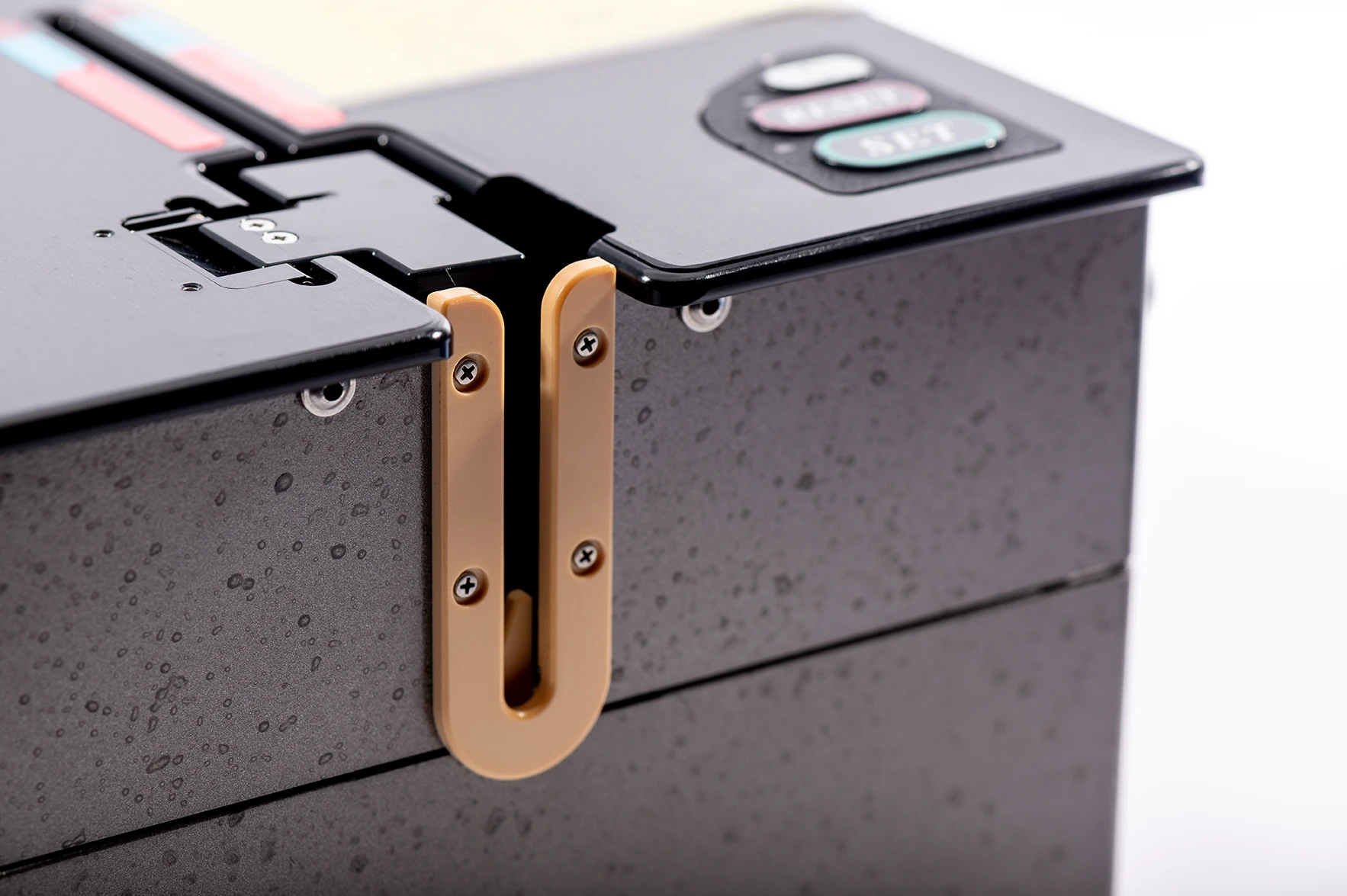

APM-101
Automatic fibre preparation machine
For consistent results in a production environment.
Automated stripping, cleaning and cleaving.

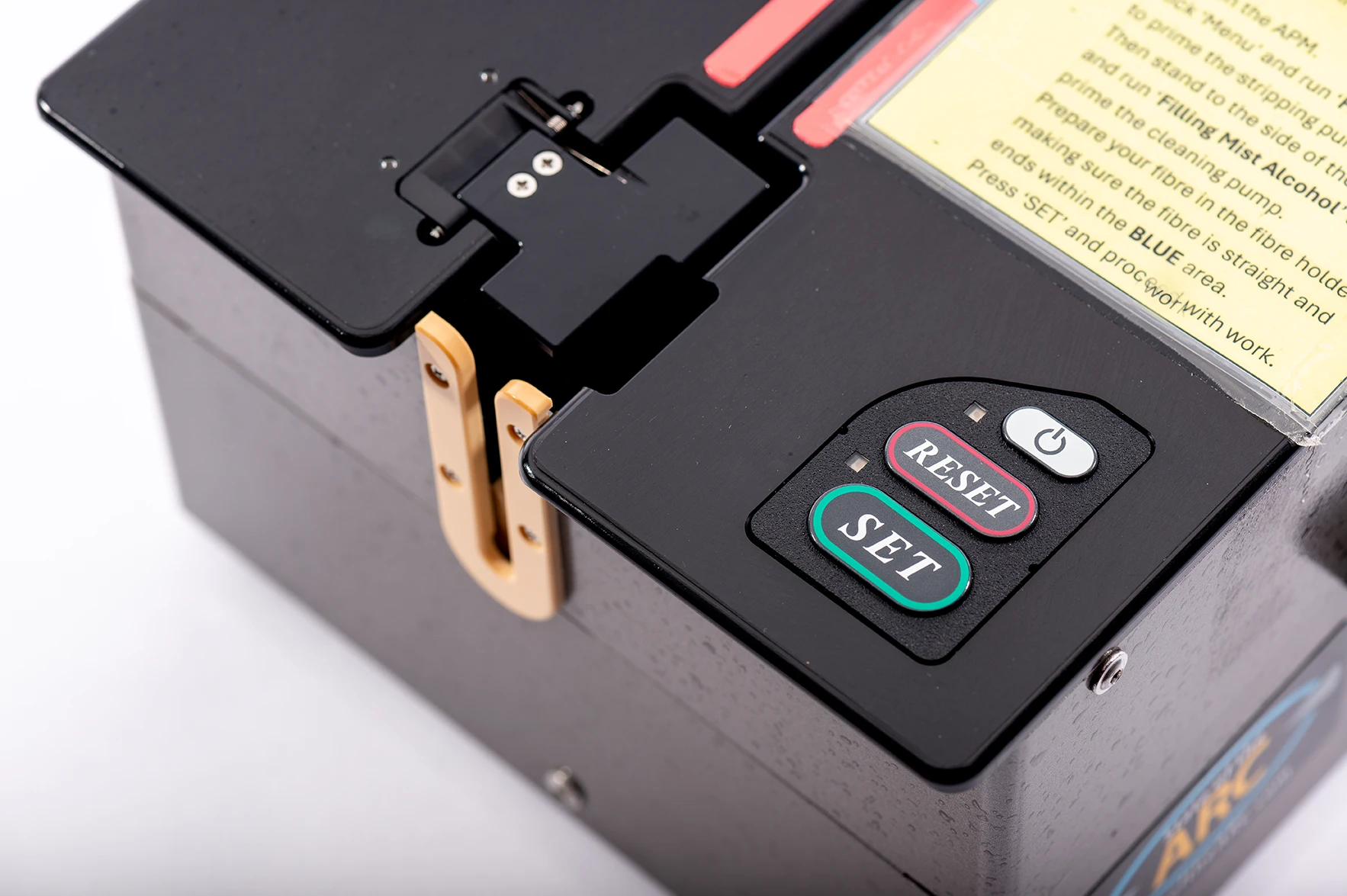

The APM-101 automatically strips, cleans and cleaves fibres ready for splicing.
With highly consistent results and a superior operating process that is highly reliable, The APM-101 automatically performs all the steps required to prepare optical fibres for splicing.

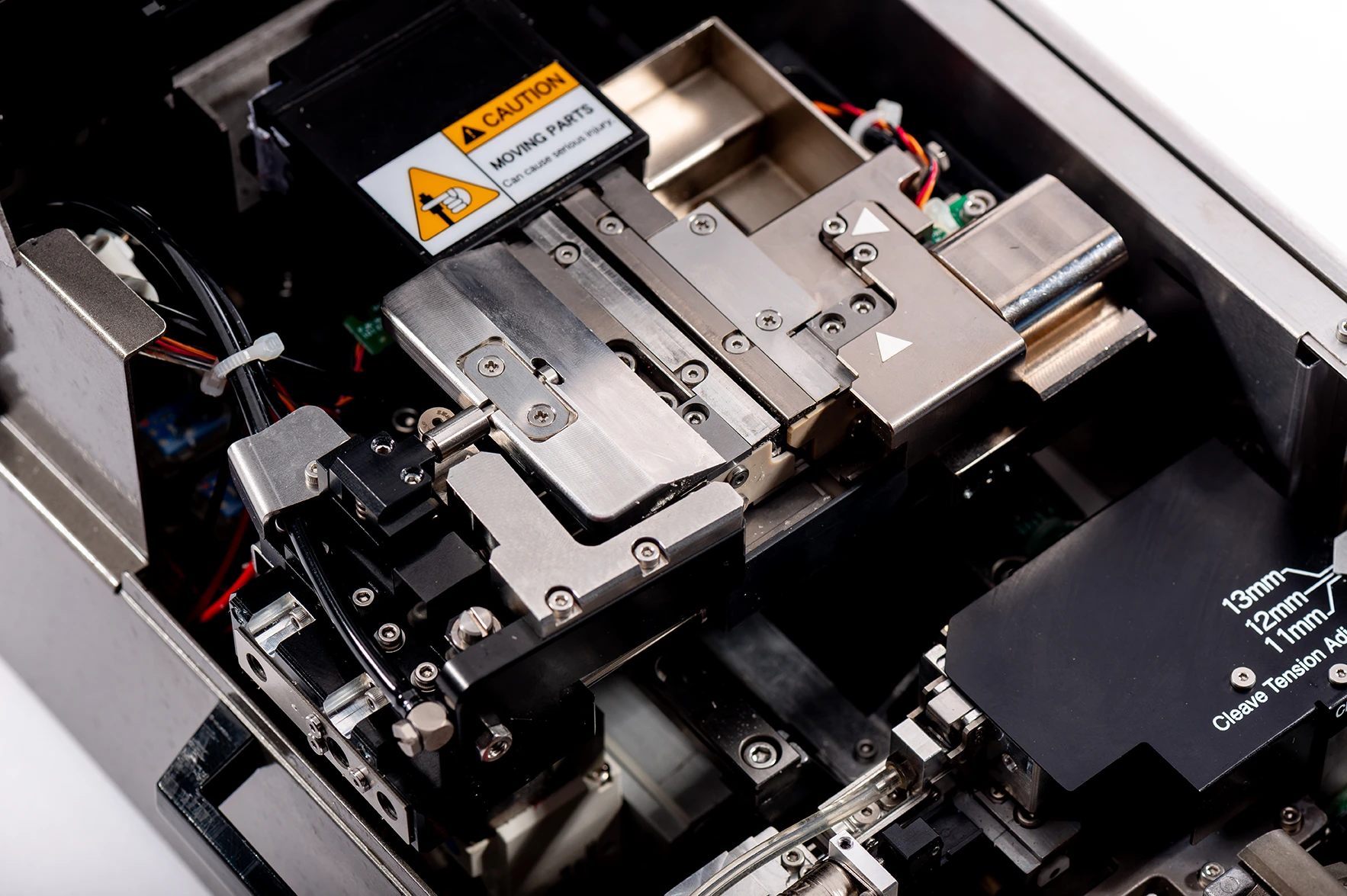

Steps carried out by APM-101 stripping the fibre without degrading fibre quality, cleaning fibre with alcohol to remove coating residue, and cleaving consistently at a right angle to the fibre axis.
In factory and industrial automation systems the APM-101 offers:
- Quick operation by an automated system provides continuous long-operation times, avoiding multiple break interruptions to clean components and residue containers. With an internal pressure sensor, the APM-101 system checks the air pressure required for cleaving quality before initialising operations for low and incorrect air pressures to be detected.
- Compact body design with a small footprint to fit various operating surfaces.
Compressed air is necessary for operation.
Key Features
Quick operation
Completion of stripping, cleaning and cleaving in a little as 18 seconds.
Consistent results
Thanks to a reliable stripping method with minimal fibre damage, and a diamond blade for consistent cleaves.
Variable cleave lengths
3mm to 9mm cleave length for 125μm cladding/250μm coating fibres
Technical specification
APM-101
Automatic fibre preparation machine
FIBRE TYPE
Conventional silica optical fibre
FIBRE DIAMETER

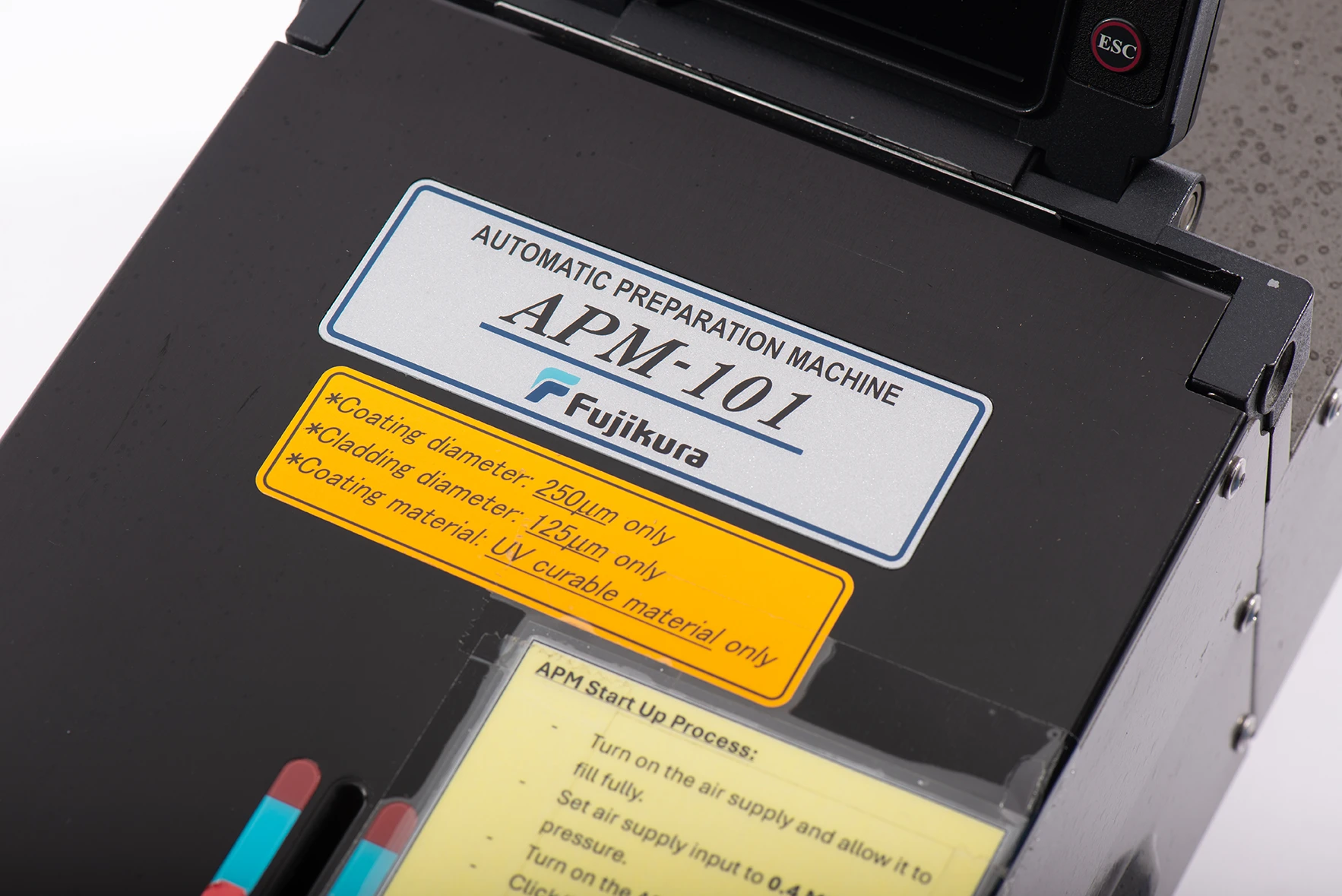

125μm cladding diameter, 250μm coating diameter
COATING MATERIAL
UV curable resin
FIBRE HOLDER
FH-100-250, FH-100-250-EV, FH-40-250
CLEAVE LENGTH
3mm to 10mm
CLEAVING ANGLE
Typically 0.5 degrees (single-mode fibre)
OPERATION TIME
23 seconds
DIMENSIONS
170mm [W] × 370mm [D] × 120mm [H]
WEIGHT
5.1kg
POWER SUPPLY
AC adaptor: ADC-15 Input AC100 to 240 V (50 ～ 60 Hz)
OPERATING CONDITIONS
0°C to 40°C and 0 to 95% RH (non-dew)
STORAGE CONDITIONS
-40°C to 80°C and 0 to 95% RH (non-dew)
COMPRESSED AIR
0.4MPa (4bar)
