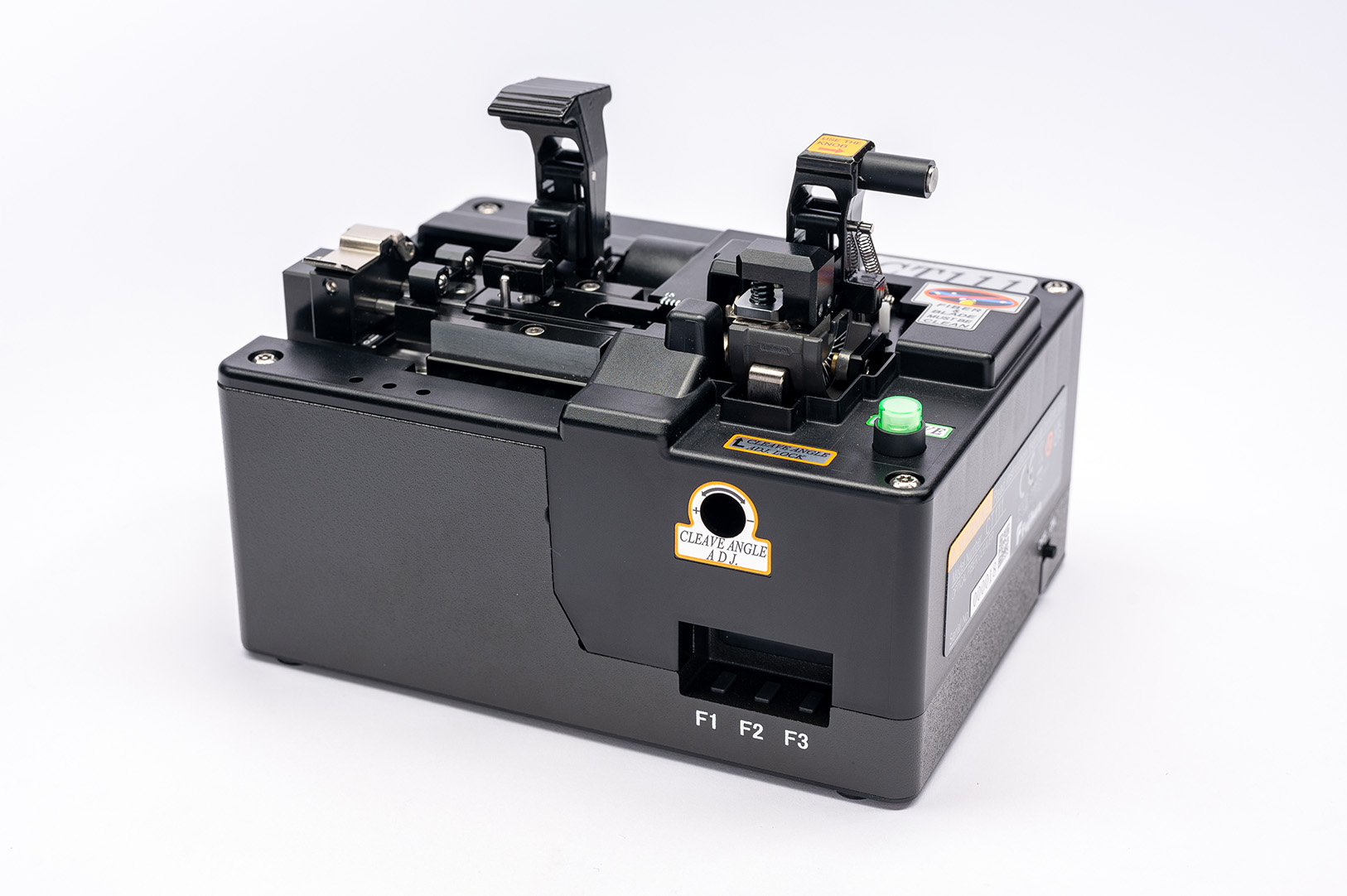

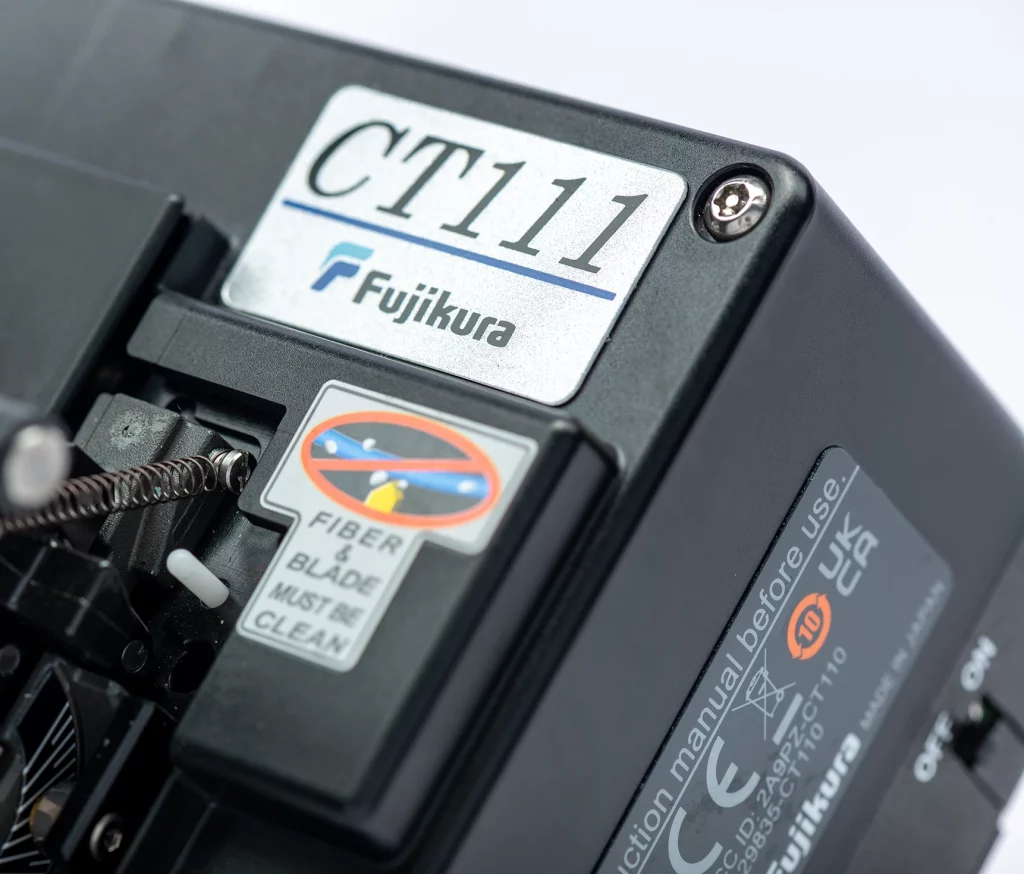

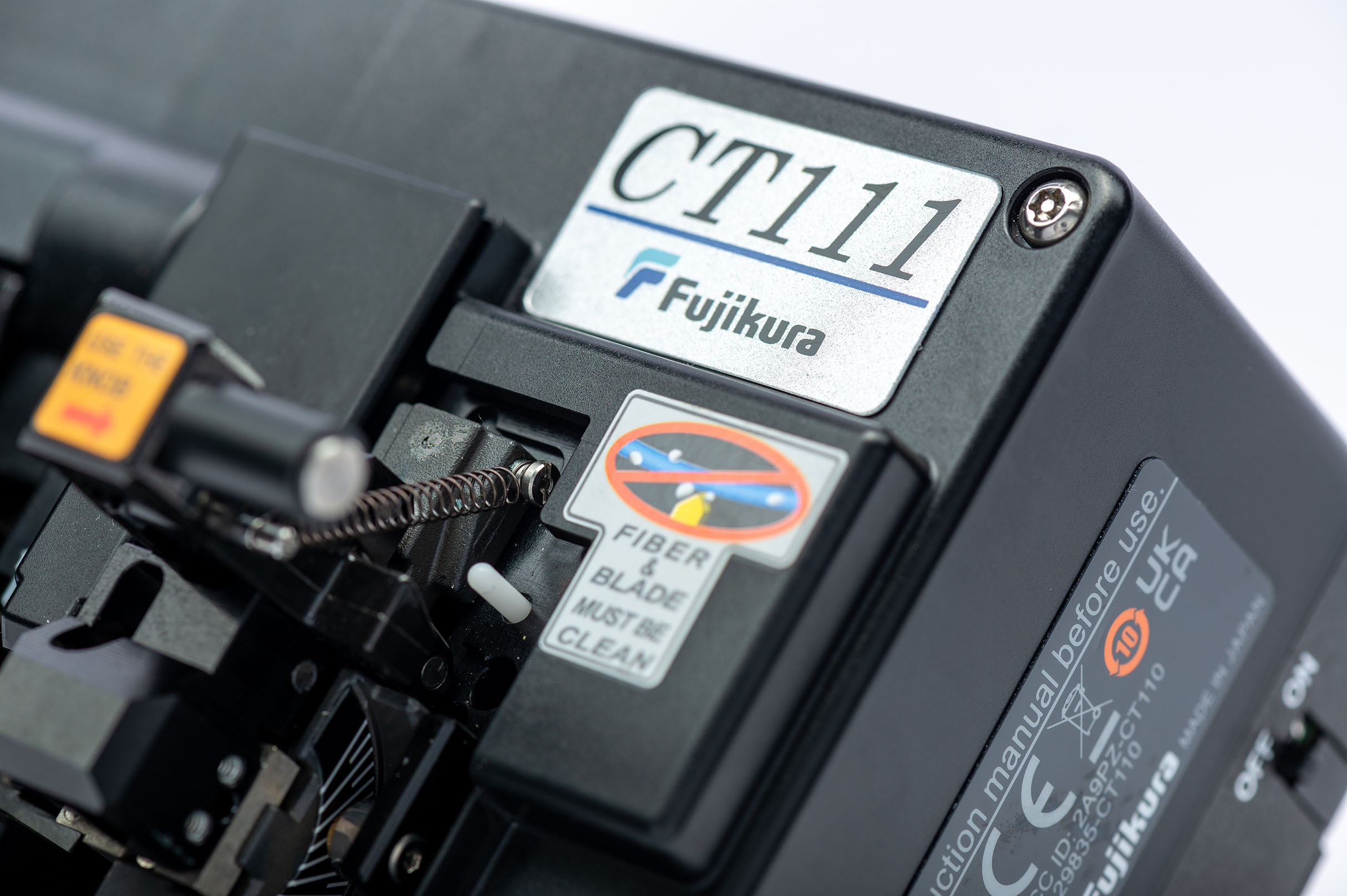

CT111
Automatic optical cleaver with angled cleaving function
Effortless, automated cleaving with RFID recognition & user-optimised programs.
An advanced optical cleaver for silica fibres.
The CT11x series of automatic optical cleavers offers superior cleaving performance compared to a conventional cleaver with a circular blade.
The CT11x series is equipped with a motorised diamond blade, which allows the operator to gradually cleave a fibre with a specific tension applied. The CT111 equips with an angled cleaving function.
Thanks to the introduction of RFID technology, the CT11x series is able to recognise what fibre holder is being used and then select the appropriate cleaving programme optimised by the user.
Applications
Our high-quality optical fibre cleavers are built to achieve low cleave angles with pristine end-faces for a vast array of fibre types and are heavily utilised in a variety of specialty fibre optic industries, such as universities, R&D optical institutes, high power laser, photonics industries and medical applications.
Key Features
Automatic features
Automatic fibre tension and blade position adjustment, plus automatic cleaving programme selection via RFID signal from the fibre holder.
Technical specification
CT111
Automatic optical cleaver with angled cleaving function
APPLICABLE FIBRES
Conventional silica single optical fibre
Cladding diameter: 0.08mm to 0.250mm
Coating diameter: 0.081 to 2mm
APPLICABLE FIBRE HOLDER
FH-100 series / FH110 series / FH-70 series
CAPABILITY OF SETTING RANGE FOR TENSION
0 to 900gf
TOTAL FIBRE LENGTH
Approx. 11~44mm
CLEAVE ANGLE
Avg 0.3°, cladding dia. 0.125mm
FIBRE TWISTER
Equipped

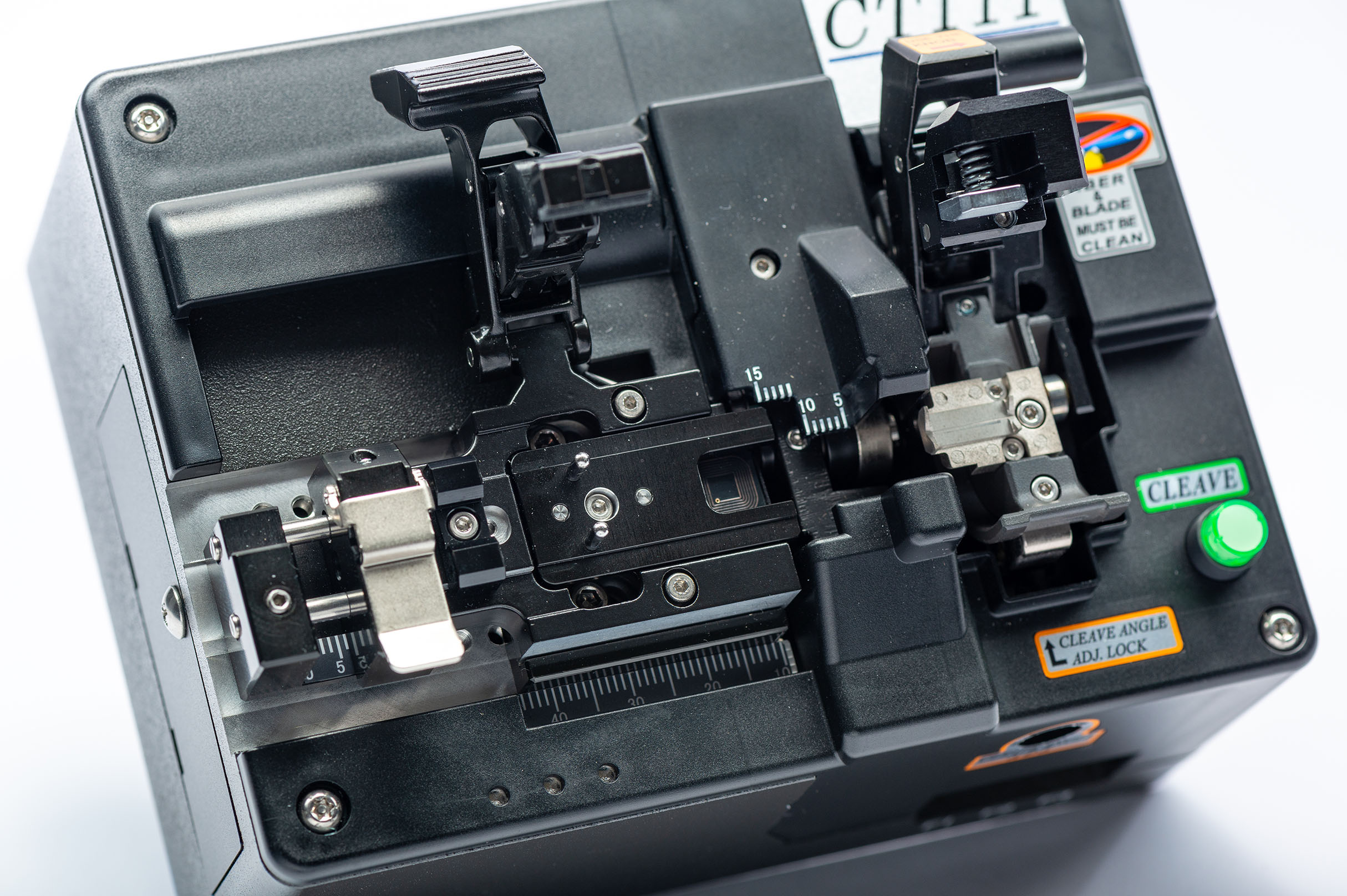

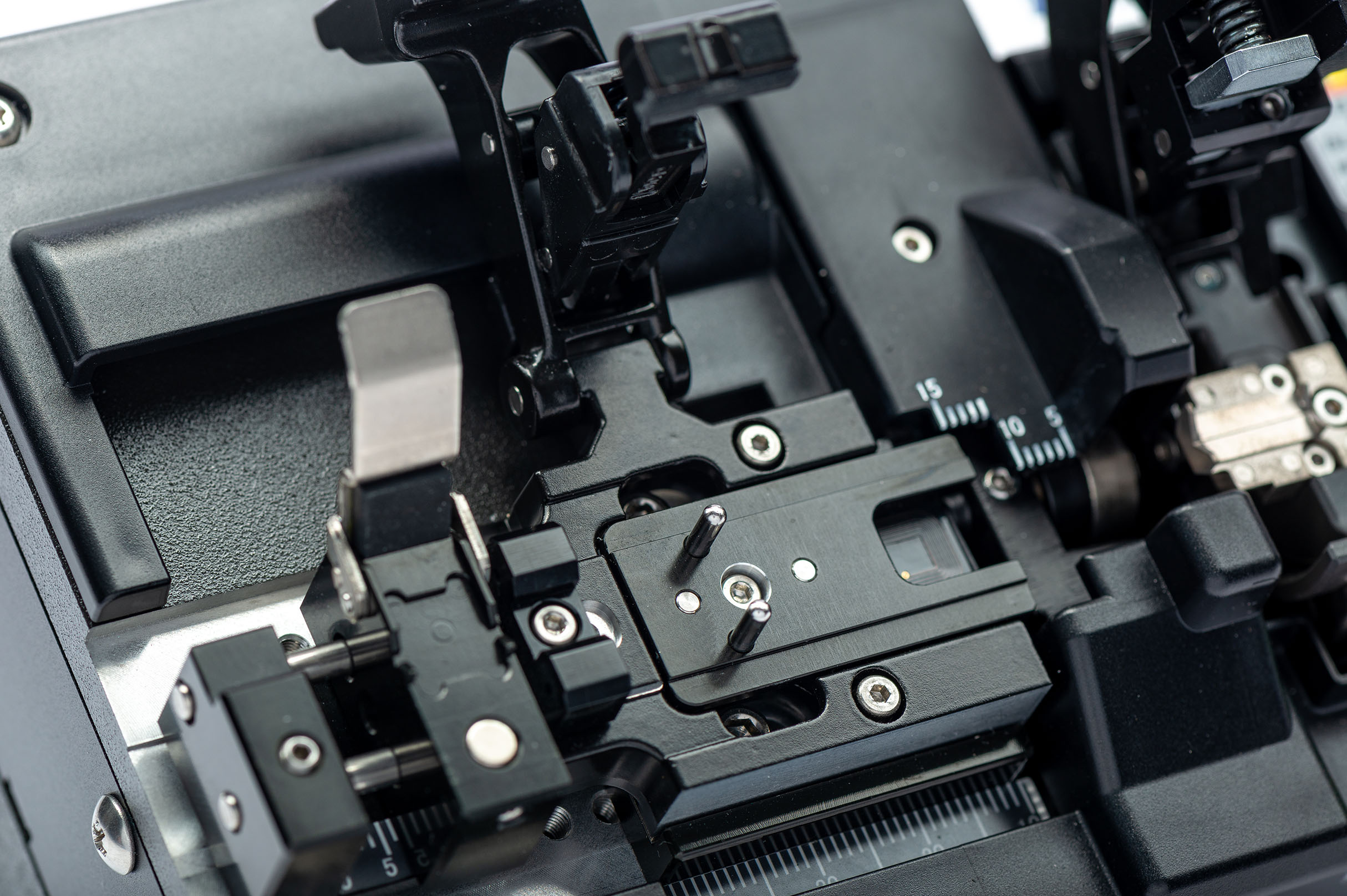

ANGLED CLEAVING
Approx. 0° to 15°
BLADE LIFE
Approx. 200,000 fibre cleaves at cladding dia. 0.250mm
DIMENSIONS
140mm [W] x 106mm [D] x 103.5mm [H]
WEIGHT
Approx. 850g without battery
AC ADAPTER INPUT
AC100 to 240V, 50/60Hz, Max. 1.5A
AC ADAPTER OUTPUT
Approx. DC 19V, Max 2.1A
BATTERY
Four AA / IEC LR6
BATTERY LIFE
Approx. 250 fibre cleaves with standard 0.125mm at 25°C
INTERFACE
PC: USB2.0 Mini B type
WIRELESS COMMUNICATION
RFID: Compliant with ISO 156937
FIRMWARE CLEAVEMODE

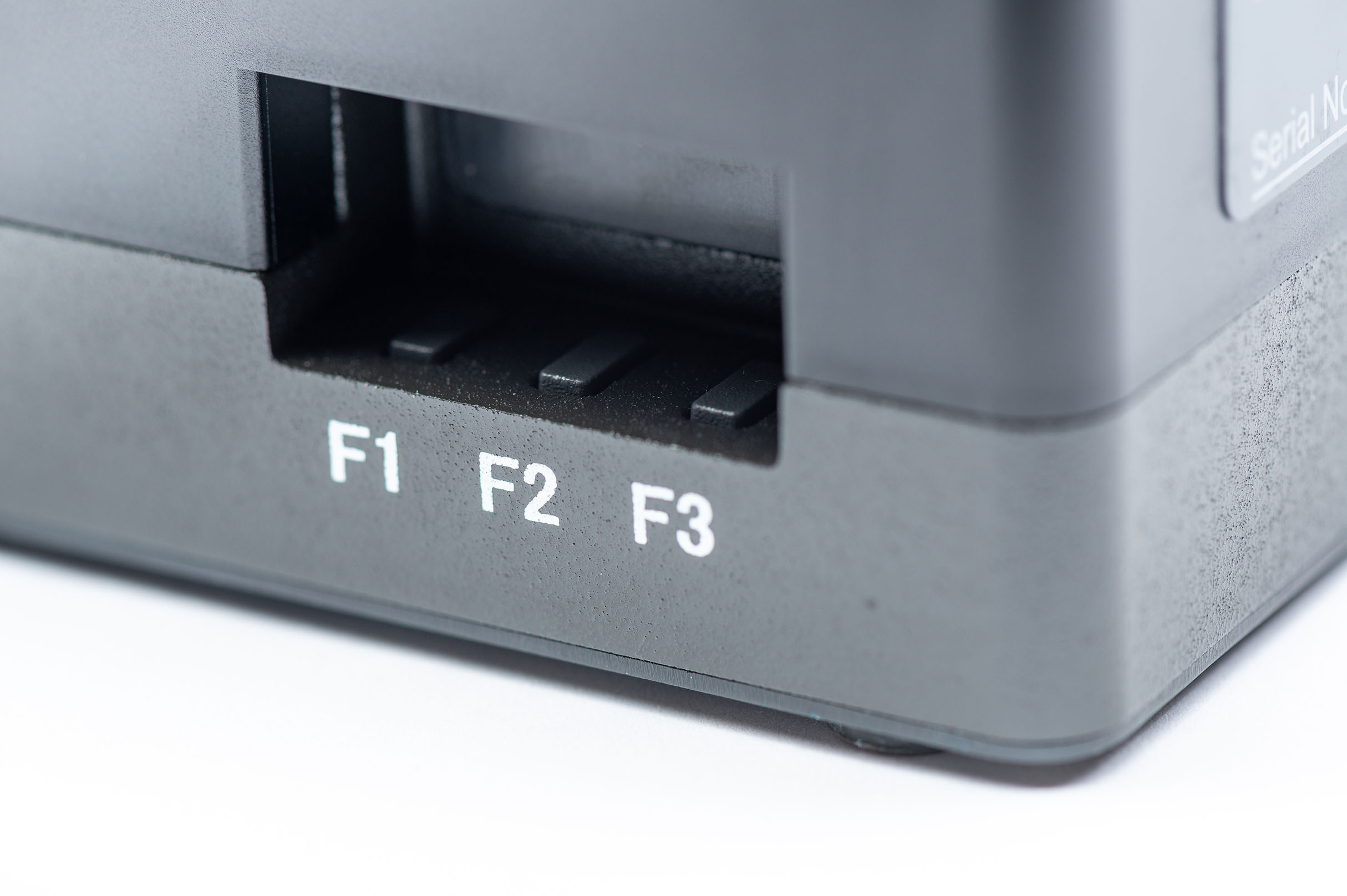

Ten cleave modes can be saved in the device, three cleave modes can be selected by the switch on the device.
OPERATING TEMPERATURE
0 to 40°C
OPERATING HUMIDITY
0 to 95% RH non-condensing
STORAGE TEMPERATURE
-40 to 80°C
STORAGE HUMIDITY
0 to 95% RH non-condensing
AUTOMATIC FUNCTIONS
Auto cleave mode selected by RFID tag, motorised blade position change, motorised auto tension setting
COATING ADJUSTER
Coating position adjustment mechanism after cleaving
SOFTWARE FOR PC
Firmware update via the internet, cleaving parameter upload and download
