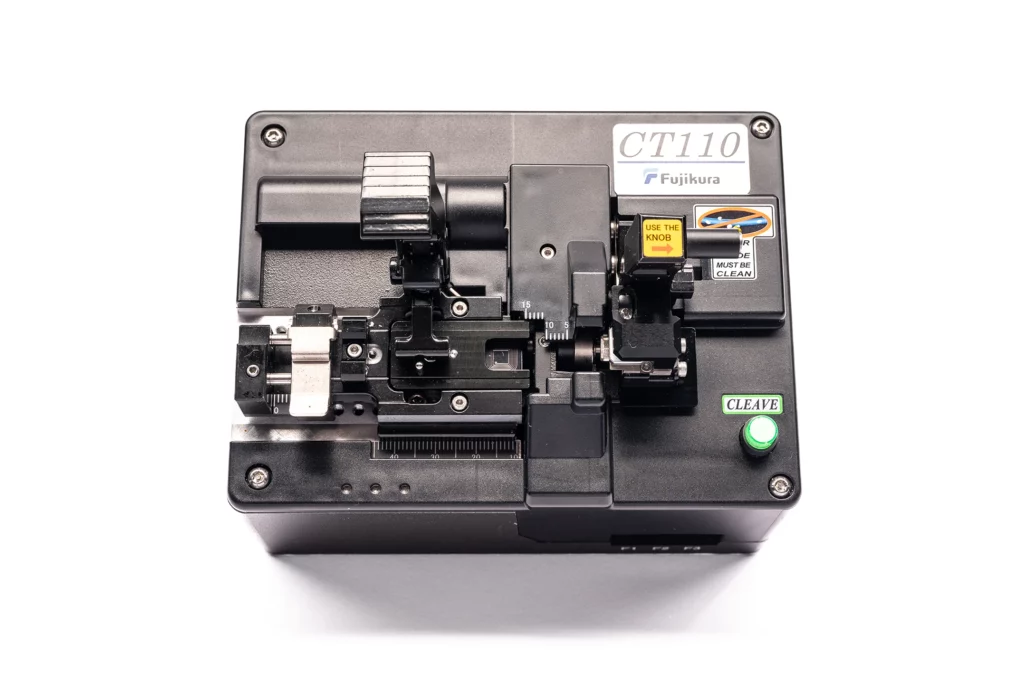

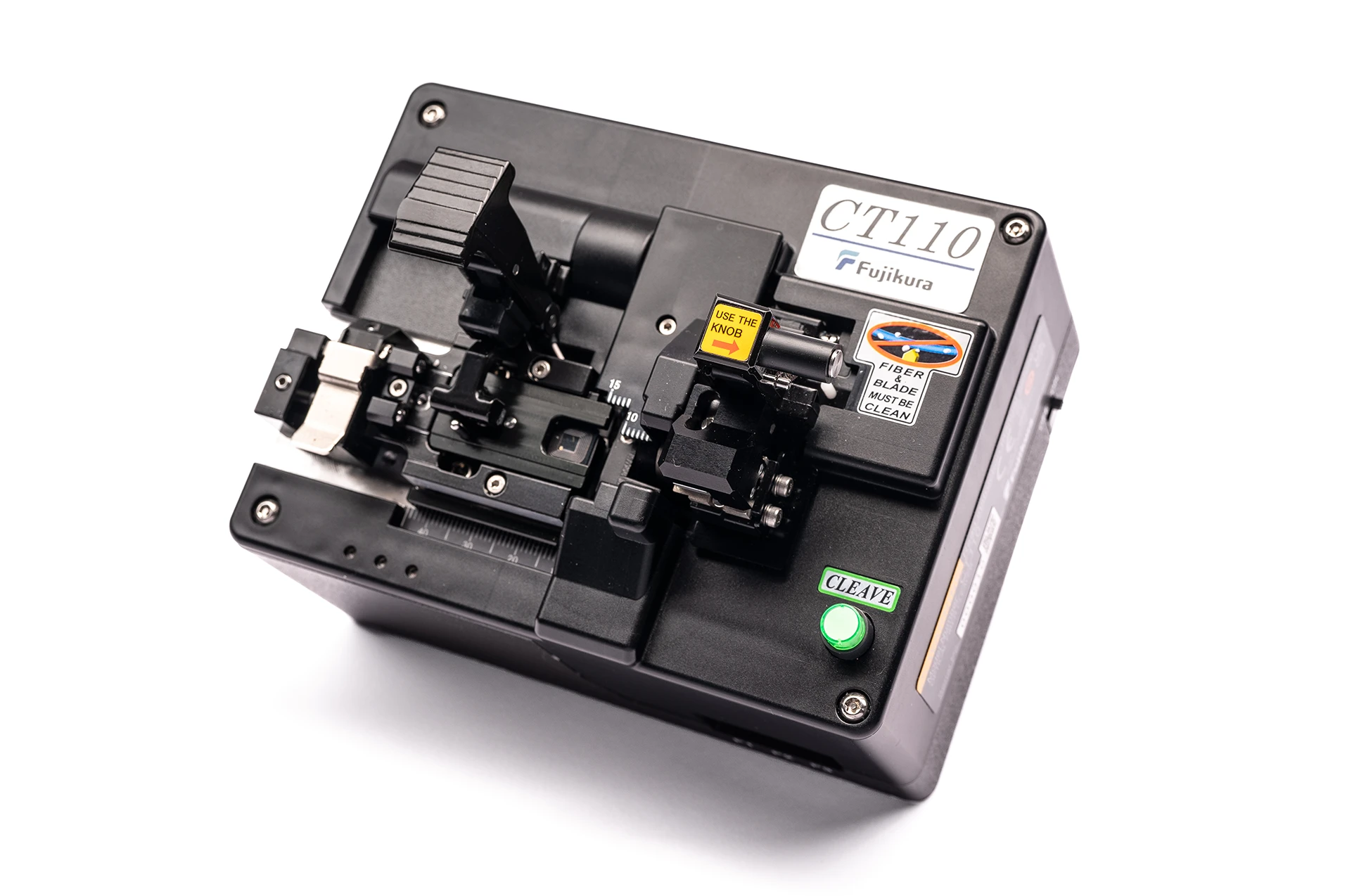

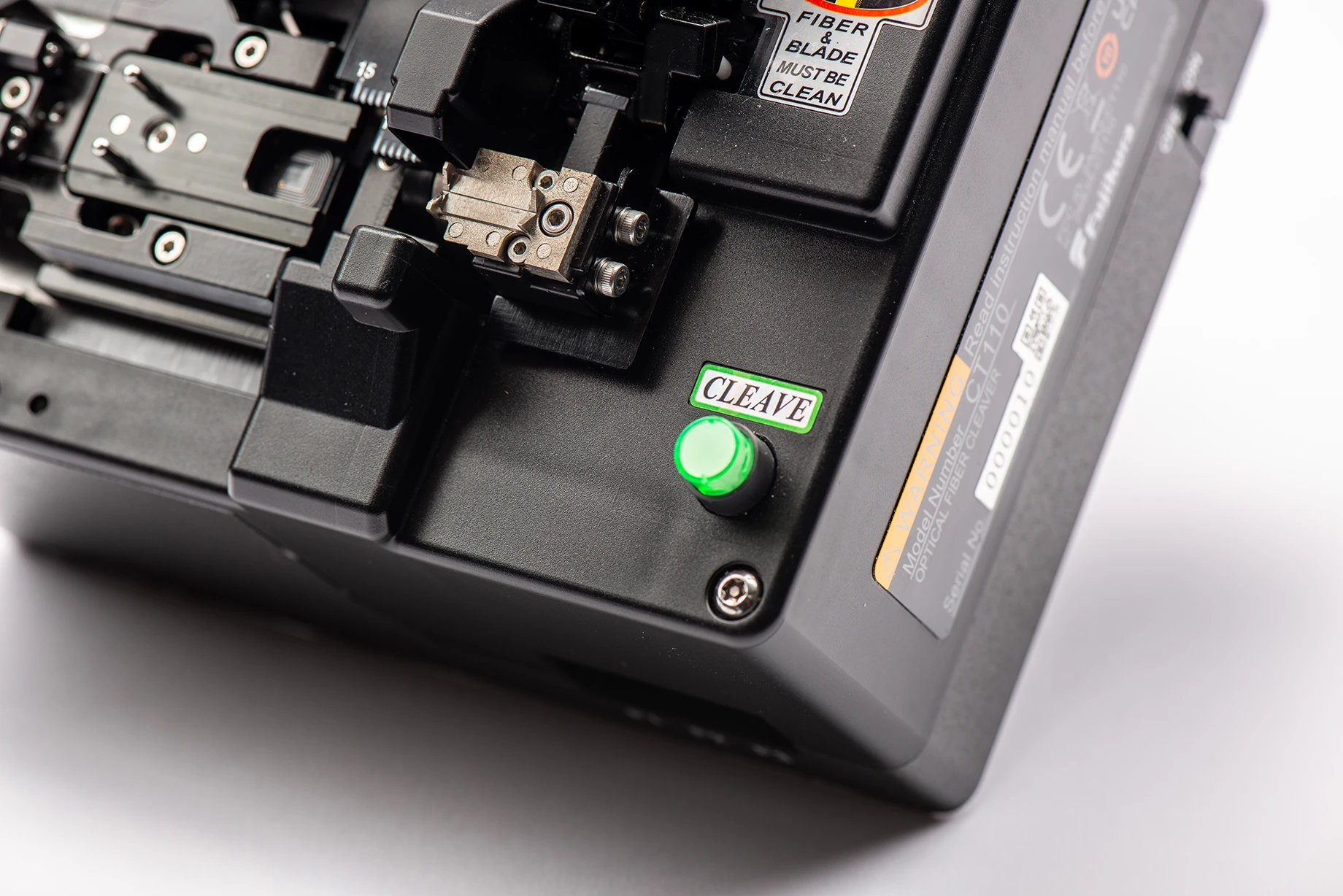

CT110
Automatic fibre cleaver
Effortless, automated cleaving with RFID recognition & user-optimised programs.
An advanced optical cleaver for silica fibres.
The CT11x series of automatic optical cleavers offers superior cleaving performance compared to a conventional cleaver with a circular blade.

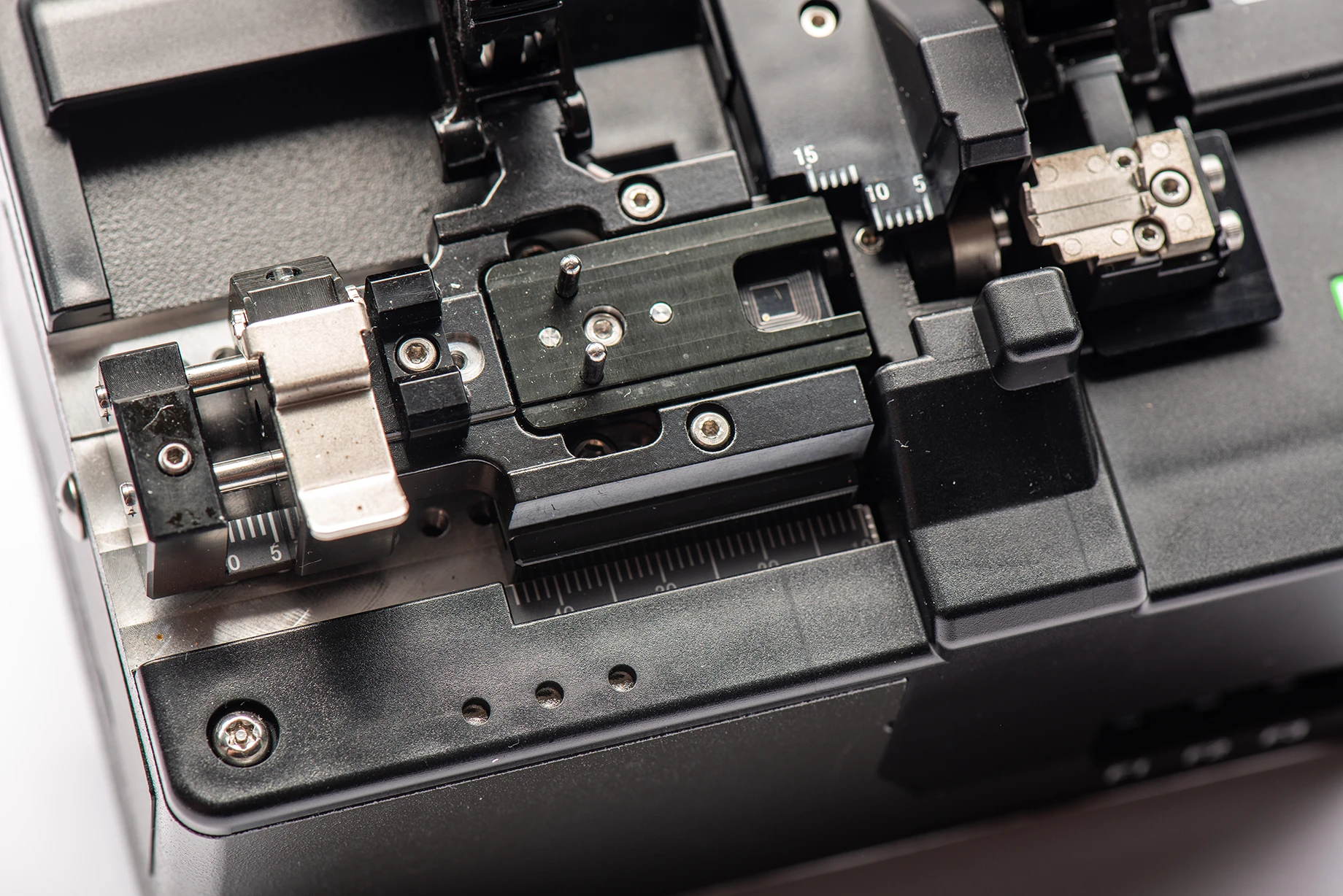

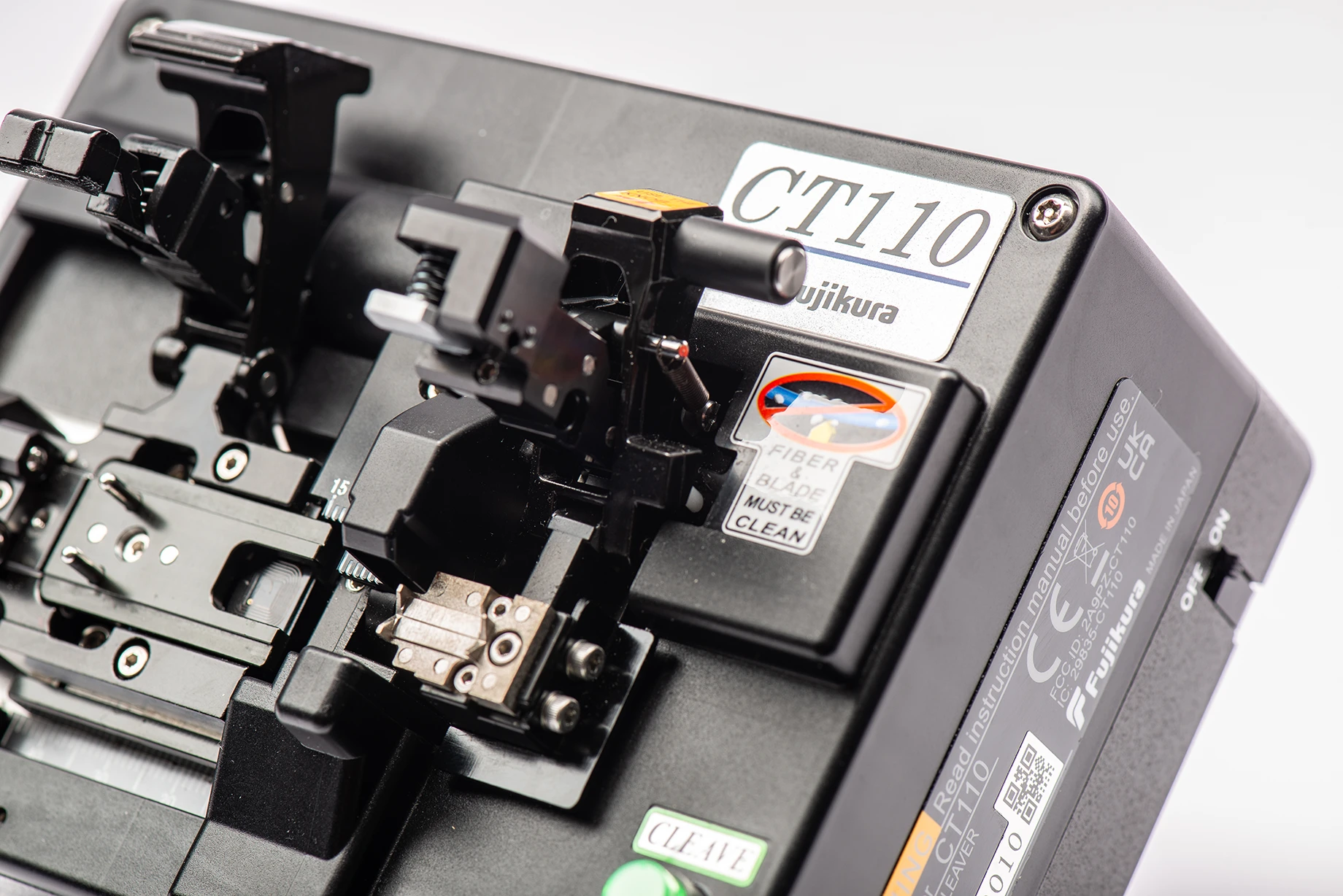

The CT11x series is equipped with a motorised diamond blade, which allows the operator to gradually cleave a fibre with a specific tension applied.
Thanks to the introduction of RFID technology, the CT11x series is able to recognise what fibre holder is being used and then select the appropriate cleaving programme optimised by the user.
Applications
Our high-quality optical fibre cleavers are built to achieve low cleave angles with pristine end-faces for a vast array of fibre types and are heavily utilised in a variety of specialty fibre optic industries, such as universities, R&D optical institutes, high power laser, photonics industries and medical applications.
Key Features
Automatic features
Automatic fibre tension and blade position adjustment, plus automatic cleaving programme selection via RFID signal from the fibre holder.
Technical specification
CT110
Automatic optical fibre cleaver
APPLICABLE FIBRES
Conventional silica single optical fibre Cladding diameter: 0.08mm to 0.250mm Coating diameter: 0.081 to 2mm
COMPATIBLE FIBRE HOLDERS [1]
FH-100 series / FH110 series / FH-70 series
TENSION SETTING RANGE [2]
0 to 900gf
TOTAL FIBRE LENGTH
Approx. 11~44mm
CLEAVE ANGLE [3]
Avg 0.3°, cladding dia. 0.125mm
BLADE LIFE [4]
Approx. 200,000 fibre cleaves at cladding dia. 0.250mm
DIMENSION
140 [W] x 106 [D] x 103.5 [H]
WEIGHT
Approx. 810g without battery
AC ADAPTER INPUT
AC100 to 240V, 50/60Hz, Max. 1.5A
AC ADAPTER OUTPUT
Approx. DC 19V, Max 2.1A
BATTERY
Four batteries (ANSI AA / IEC LR6) Cleaves with battery: Approx. 250 fibre cleaves with standard 0.125mm at 25°C

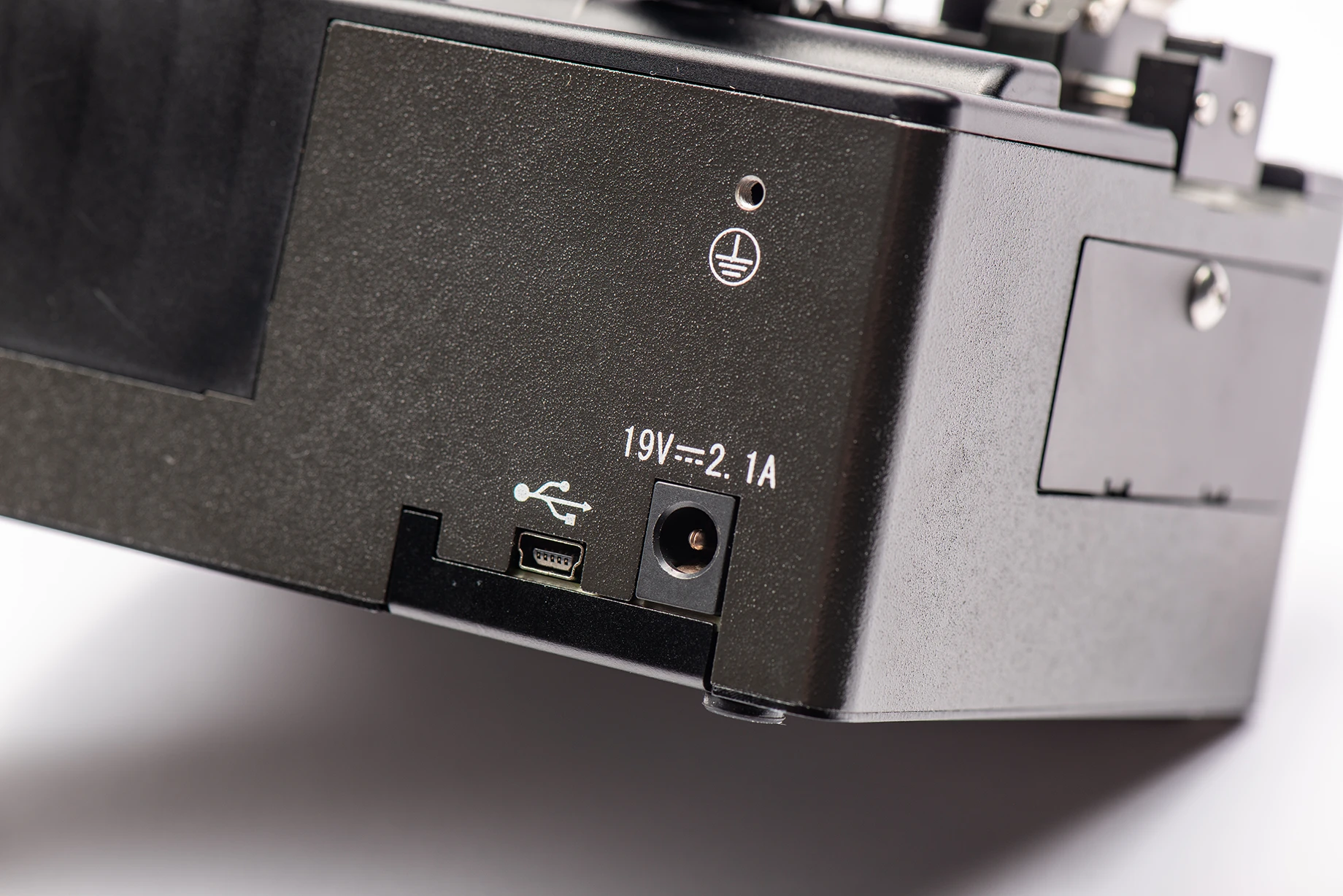

INTERFACE
PC: USB2.0 Mini B type
Ground point: Applicable by M3 size truss screw
WIRELESS COMMUNICATION
RFID: Compliant with ISO 156937
FIRMWARE CLEAVEMODE
10 cleave modes can be saved in the device.
3 cleave modes can be selected by the switch in the device.
OPERATING TEMPERATURE
0°C to 40°C
OPERATING HUMIDITY
0 to 95% RH non-condensing
STORAGE TEMPERATURE
-40°C to 80°C
STORAGE HUMIDITY
0 to 95% RH non-condensing
AUTOMATIC FUNCTIONS
Auto cleave mode selected by RFID tag
Motorised blade position change
Motorised auto tension setting
COATING ADJUSTER
Coating position adjustment mechanism after cleaving
SOFTWARE
Firmware update via the internet
Cleaving parameter upload and download
NOTES
[1] Holder Adapter Plate (AD-CT110-FH70) is necessary to use FH-70 series. [2] There are some cases in the set tension is different from the actual tension. [3] Maximum cleaved angle changes depending on the fibre type cleaved and clamp position. [4] Support 10,000 cleaves per position at cladding dia. 0.250mm. 20pos. X 10,000 cleaves = 200,000 cleaves. The blade life changes depending on the environmental conditions. Operating method and the fibre type cleaved.
