Introducing the new FSR series of optical fibre recoaters

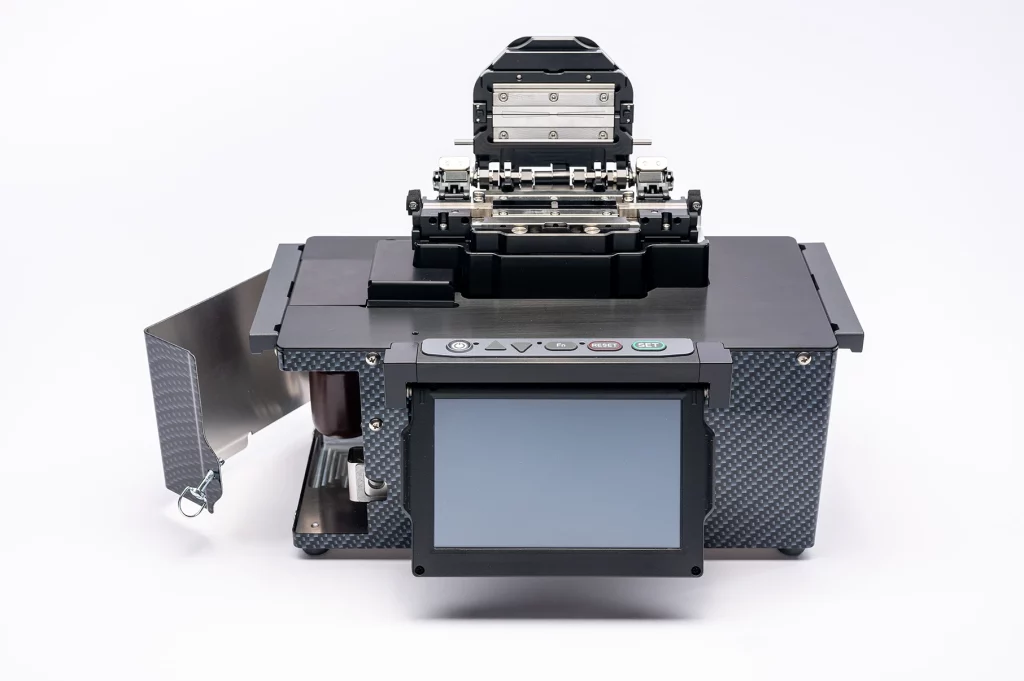

We are pleased to launch a new FSR series of optical fibre recoaters – the FSR115, FSR116, and FSR117.
The new speciality series of fibre recoaters is an upgraded version of our popular FSR05, 06, and 07 models. The series has distinct new automated features and faster, more accurate performance for industries and applications including specialist R&D institutes, high power laser manufacturers, and optical component production lines.

Each model features a redesigned pump that provides a shorter UV resin injection time and reduces total recoating time typically by around 25 percent. The new FSR series also has improved recoating length repeatability thanks to the mould, which now includes an air vent on the upper U-groove. The air vent allows the flow of curable material without any air bubbles, which makes recoating consistently more stable and accurate. LEDs have also been added to the mould injection area for increased resin visibility.

The new moulds are now equipped with RFID sensors which tell the machines what mould is being used. The machine then uses that information to highlight the available recoating modes applicable to a particular mould or fibre. This new functionality results in a faster set-up process and removes the potential for using incorrect settings, which can cause delays, complications, and the need to carry out work again.

Thanks to the addition of an LED touchscreen interface, the FSR115, FSR116, and FSR117 are more user-friendly. The colour LED touchscreen provides a more intuitive and versatile user experience which is especially beneficial when the machine is integrated into a desk on a production line, which might limit the ability to easily access and properly use the buttons

Operators can now also take advantage of the recoating centring adjustment for enhanced fibre alignment. This new feature aligns the fibre centrally to where the resin is deployed to and in doing so, helps minimise the risk of getting an uneven coat, which contributes to more consistent results. Centring is achieved with a fibre height adjuster and spacers that allow fine tuning based on coating variations.

The new FSR range continues to offer end users the ability to carry out optimum reliability proof testing, tension testing and proof-failure testing; the FSR117 has a proof test function of up to 10kgf (kilogram-force) and the FSR116 up to 2kgf. The smaller FSR115 does not include proof test functionality.
Teams in research and production environments have been using Fujikura optical fibre recoaters for more than 10 years – with the products typically used by R&D, photonics, fibre laser businesses and specialist component manufacturers.

Please email sales@fujikura.co.uk for pricing and availability.
