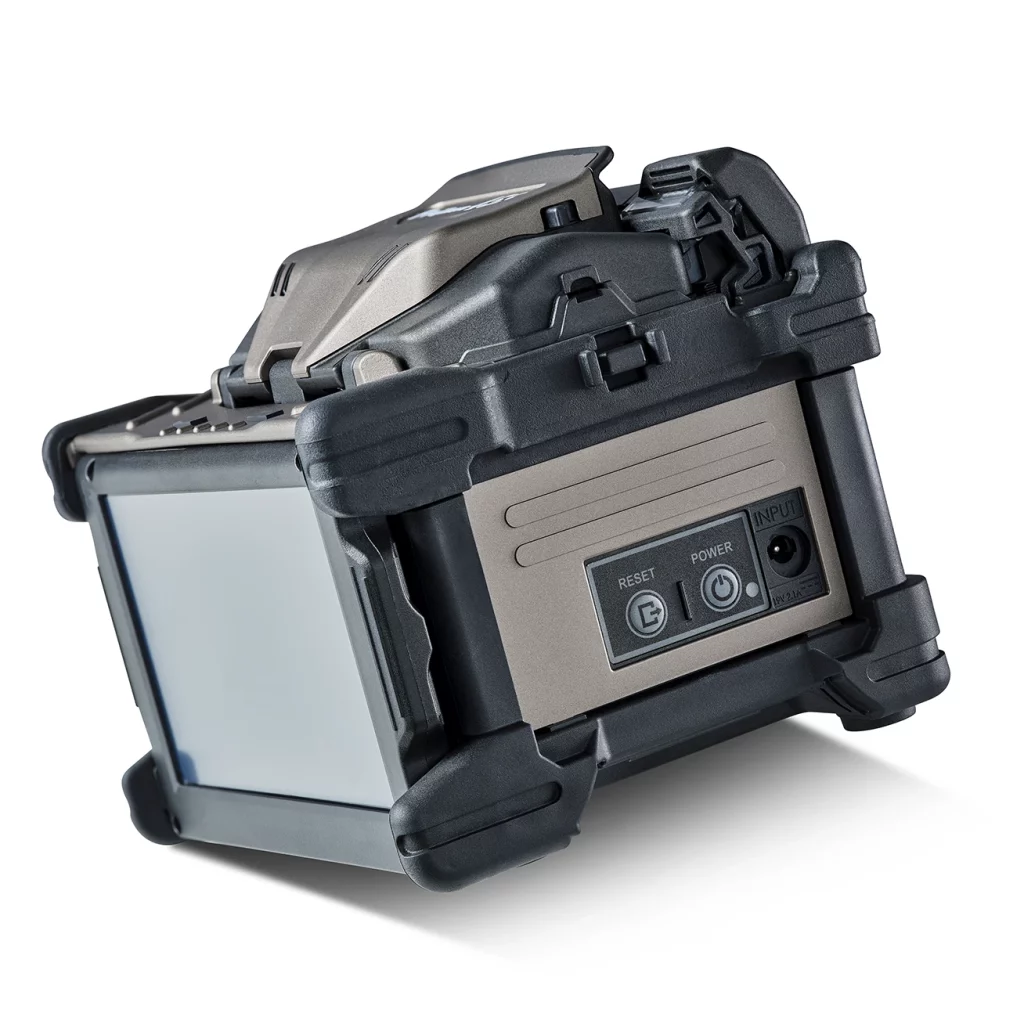

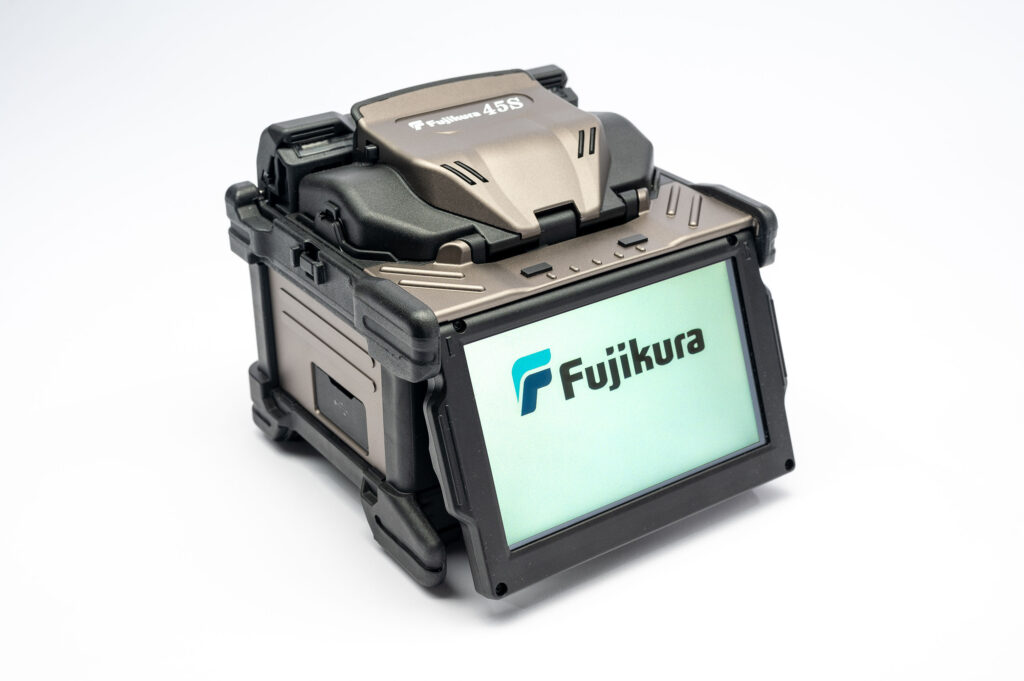

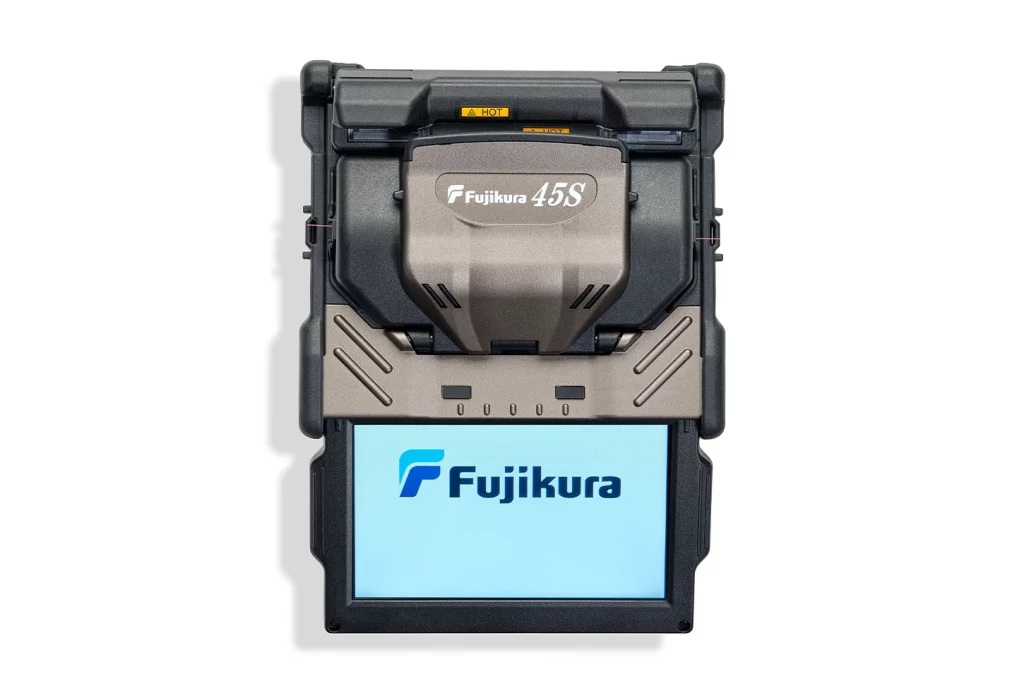

Introducing the new 45S active cladding alignment splicer

We are delighted to announce the launch of the 45S, a new small but high-performance fusion splicer that delivers a 30 per cent reduction in operational cycle time compared to its predecessor.

With its ground-breaking simultaneous fibre preparation features, improved operation, and exceptional reliability, the 45S is the latest fusion splicer to set a new standard for FTTx cladding alignment splicers.

From fibre preparation through to completion of heating, the 45S simplifies and speeds-up the complete splice process compared to the 41S+ it replaces, without compromising on the quality of splice.

Simultaneous fibre preparation streamlines the splicing process. Dual stripping of 250μm fibres is achieved with the SS05 fibre stripper. The CT50 cleaver benefits from a new dual fibre adaptor plate which enables simultaneous cleaving of two fibres.

Thanks to an inventive new mechanism, the 45S makes it fast and easy to load two fibres at the same time. When left and right fibres are set in base of the sheath clamp, the setting mechanism responds to pressure from the operator’s fingers and causes the sheath clamp lids to close automatically – eliminating the need to close the clamps manually with a free hand. Once splicing is complete, the sheath clamps open with the wind protector.

This 45S’ heater also contributes to its accelerated performance. The average heating time for a 60mm sleeve is 22 seconds, a figure which drops to 17 seconds for a slim 60mm sleeve (both times depend on environmental conditions). The end result for the user is clear – completion of splicing operations with unmatched efficiency. Users will also benefit from the long-lasting battery, which ensures uninterrupted operation for up to 230 splice and heat cycles.

Neil Bessant, Fujikura Europe’s Fusion Splicer Divisional Manager, said “We are excited to introduce the 45S, a breakthrough splicer exemplifying our commitment to innovation and user-centric design. Fibre engineers can expect high-quality splicing, superior performance, and an overall improved operation compared to the 41S+. With its small footprint, exceptional speed, and unparalleled ease of use through forward-thinking design, the 45S is leading the way when it comes to cladding alignment splicers.”

The new model’s features are backed by Active Blade Management Technology (ABMT) to ensure consistent, high quality cleaves and Active Fusion Control Technology (AFCT), which analyses the fibre end faces to deliver optimal fusion control, reducing splice loss and the need to rework splices. Both of these market-leading technologies contribute to improved efficiency, increased productivity, and reduced costs.

Thanks to an increased Z-stroke range, the 45S automatically corrects the position of the fibre if it is slightly misplaced, which simplifies fibre loading while eliminating potential errors and contributing to low loss results.

The compact cube shape of the 45S offers a smaller footprint, supporting ease of use in confined working environments and the 45S’s movable LCD monitor ensures better visibility in all environments.

The 45S will be available from November. More information is available by contacting sales@fujikura.co.uk.
