RS03

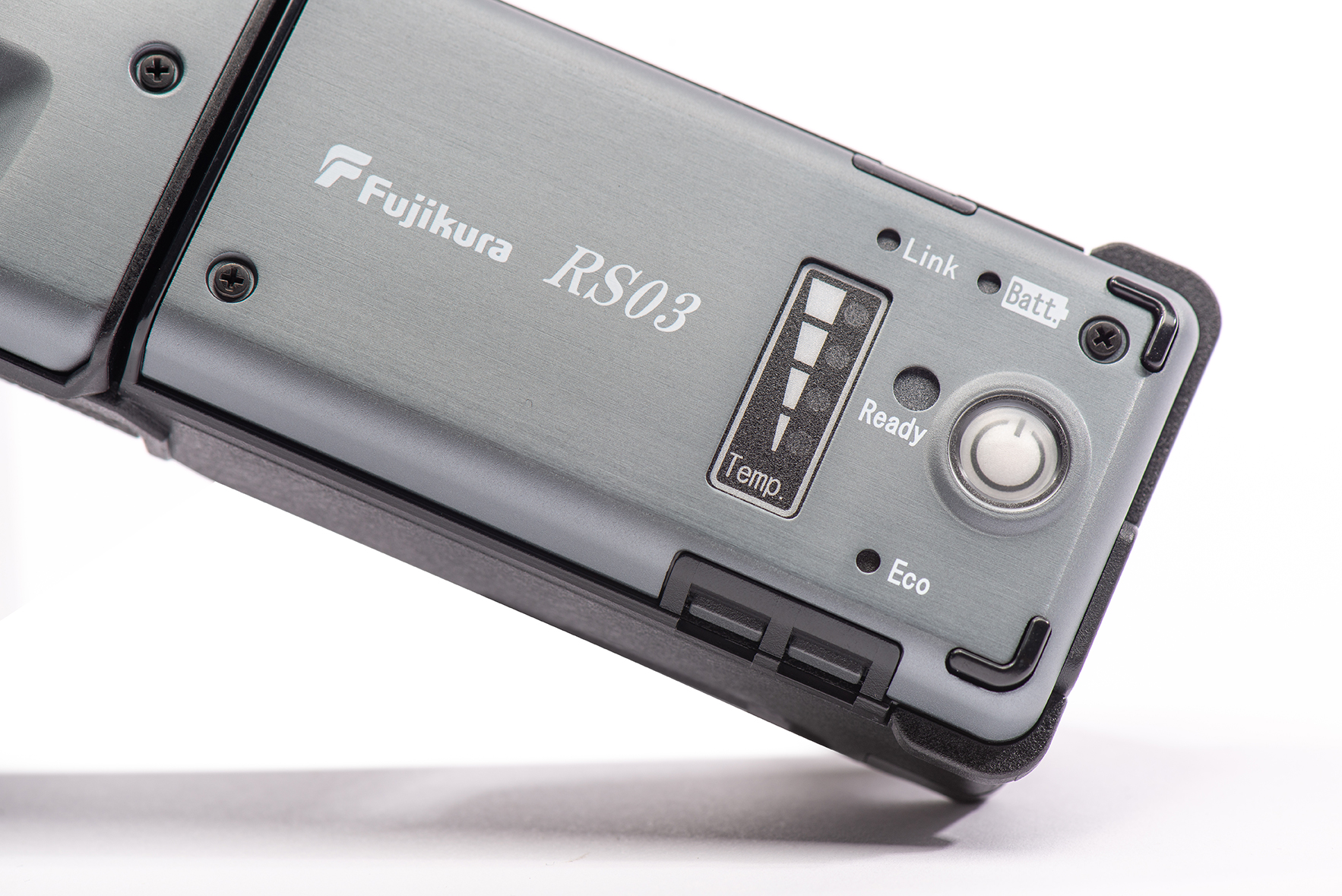

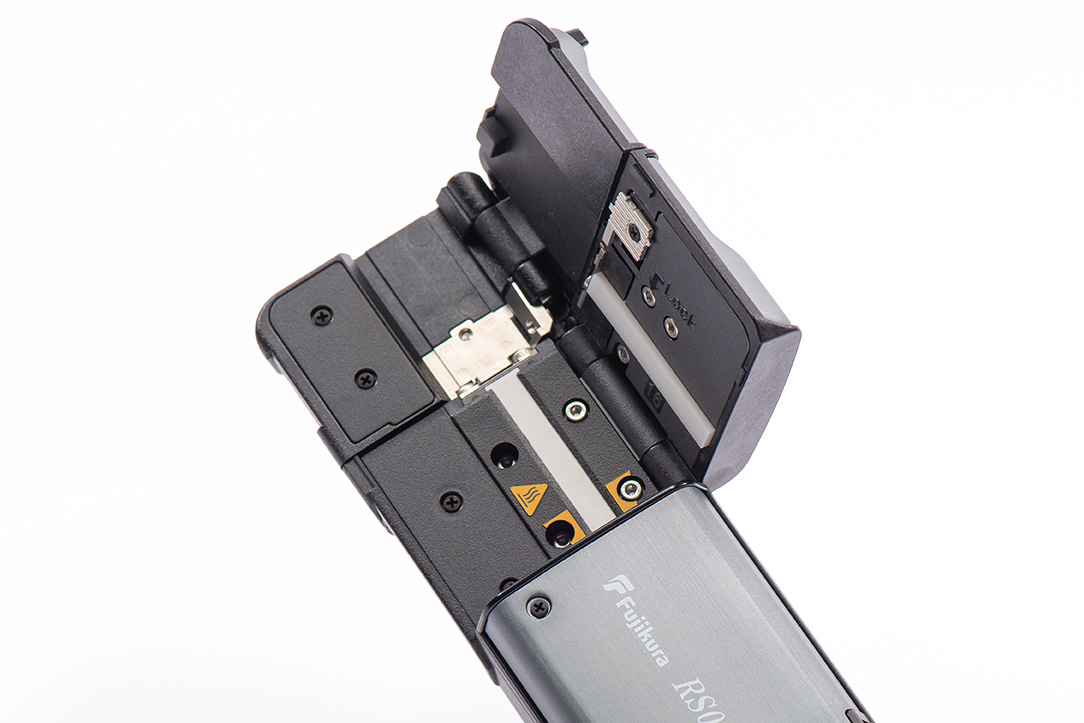

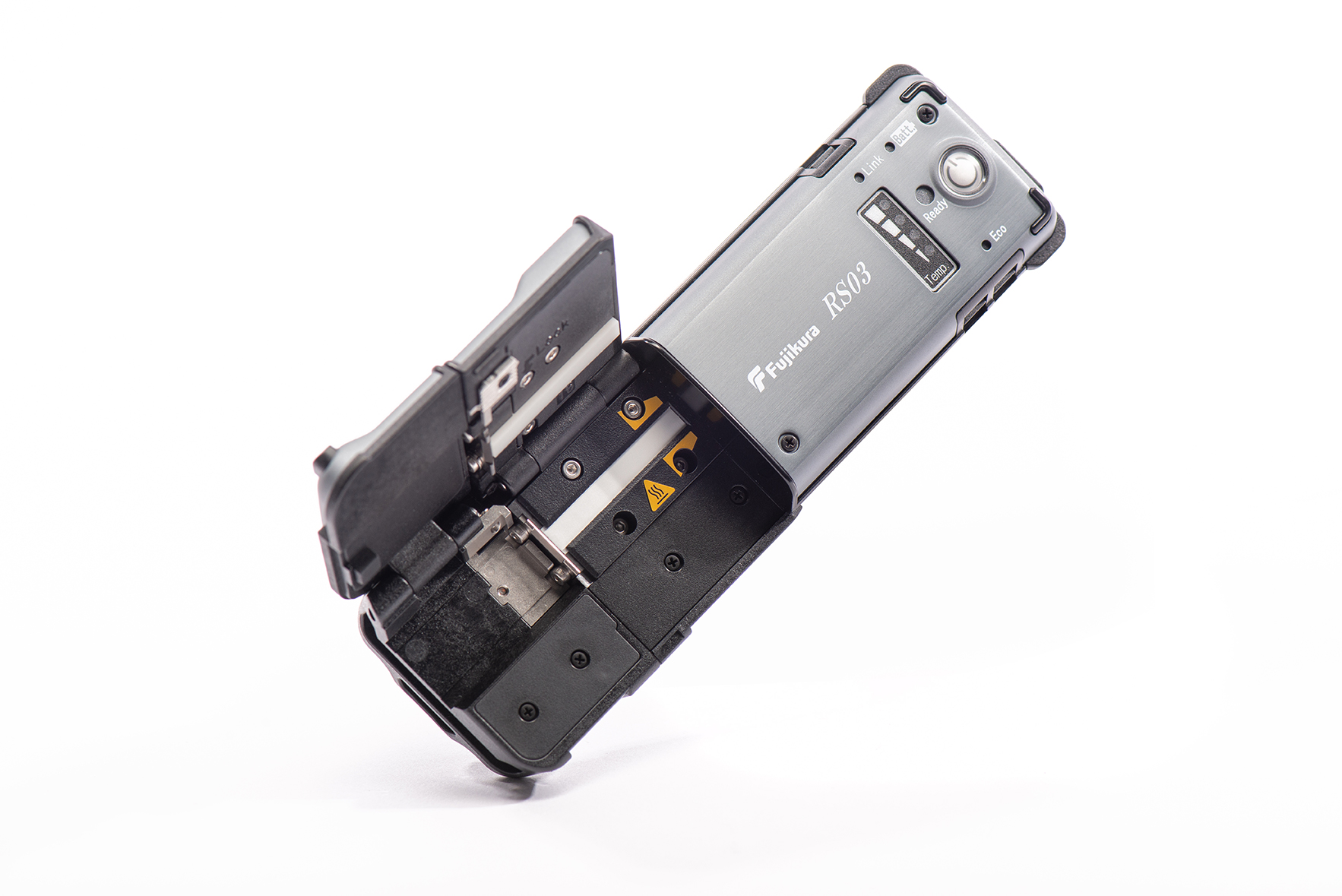

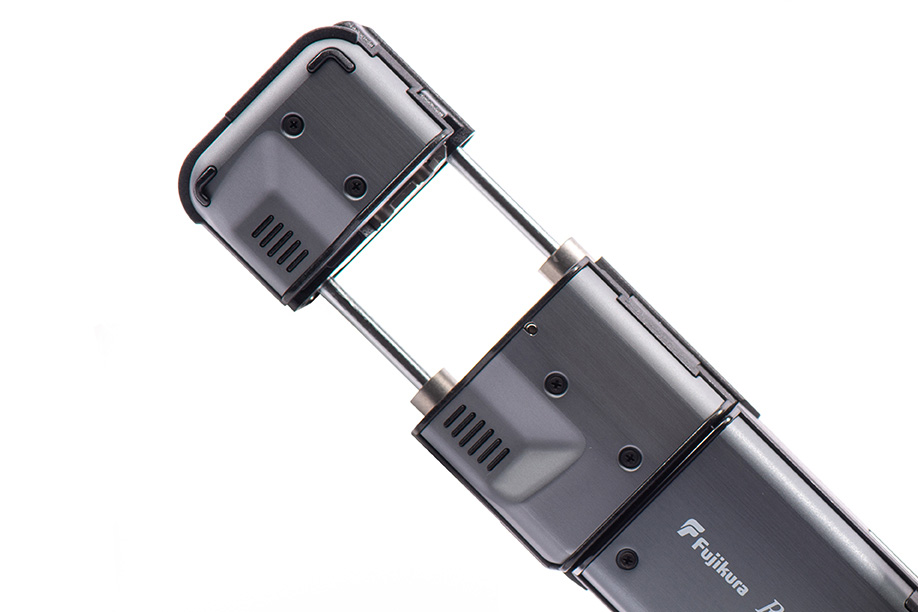

Thermal fibre stripper
The RS03 puts fast and intuitive ribbon fibre stripping in the palm of your hands.
The RS03 makes fibre stripping effortless.
Fast and efficient stripping of up to 16-fibre ribbon.
The RS03 ribbon fibre stripper quickly and cleanly strips the UV coating from telecommunications optical fibre. With the RS03, it’s possible to strip single fibres or ribbon fibre up to 16 fibres.
This is a fibre stripper that has been developed with an emphasis on ease-of-use, flexibility, and ergonomics, which is why the RS03 requires less force for the stripping process than previous generations. Furthermore, it is equipped with a large capacity battery for 600 stripping cycles – six times longer than conventional thermal strippers.
Key Features
Lower stripping force
The RS series ribbon stripper has an ergonomic design and requires lower stripping force than the previous strippers.
Stripping condition control
When the user changes the splice mode, e.g. from 12 fibre ribbon splice mode to SWR fibre splice mode, the RS03 ribbon stripper automatically changes its heating temperature and time with a wireless command from the splicer.
Universal ribbon stripper for RS03
The RS03 is compatible with 200 µm to 400 µm coated fibres without having to replace the stripper blades.
Technical specification
RS03
Thermal fibre stripper
FIBRE TYPE
Glass optical fibres, capillary
FIBRE COUNT
1 to 16
CLADDING DIAMETER
125μm
COATING DIAMETER
200μm to 400μm
STRIPPING LENGTH
Up to 35mm
TYPICAL HEATING TIME
3 seconds, 5 seconds in Eco mode
FIBRE HOLDER
100°C
WIRELESS CONNECTIVITY
Bluetooth®4.1 LE1 OS: Android 5.0 or above, iOS 8.0 or above (iPhone 6 or above）
DIMENSIONS
155.5mm [W] × 48.7mm [D] × 36.8mm [H]
WEIGHT
265g (with battery)
POWER SUPPLY
100 to 240V AC with optional ADC-09A AC adapter, DC10～17V with external DC7.4V power supply DC7.4V with BTR-12 battery pack (rechargeable lithium-ion battery)
BATTERY CAPACITY
1620mAh - typically 3.5h, 600 splices in Eco mode
OPERATING TEMPERATURE
-10 to 50°C
OPERATING HUMIDITY
0 to 95% RH (non-condensing)
STORAGE TEMPERATURE
-20 to 60°C
STORAGE HUMIDITY
0 to 95% RH (non-condensing)
SHOCK RESISTANCE
76cm all surface drop (Telcordia GR-955-CORE)
RAIN RESISTANCE
H=10mm/hr for 10 minutes (JIS C 0 034)
