The discussion surrounding ribbon fibre cable is one about efficient and cost-effective optical network deployment and management. Ribbon fibre is a catalyst for reducing installation time significantly because it allows simultaneous splicing of 12 fibres, resulting in remarkable efficiency. Notably, our SpiderWeb Ribbon® (SWR®) fibre can reduce installation time by an astounding 70%, when compared to the traditional practice of splicing individual fibres.
The impact of ribbon fibre cables also goes beyond speed; they are designed to optimise fibre density and simplify complex installation processes. Their structured ribbon configuration makes them a valuable solution for high-capacity telecommunications networks, data centres, rail and mass transit networks, and other environments where space optimsation and efficient fibre management is crucial.
Understanding fibre optics and ribbon cables
Fibre optic cables are advanced communication conduits crafted from ultra-thin strands of glass or plastic fibres, that transmit data via light signals. They are a fundamental piece of equipment in a telecoms network – powering communication and internet access by enabling high-speed data transmission over long distances with minimal signal loss and outperforming traditional copper cables.

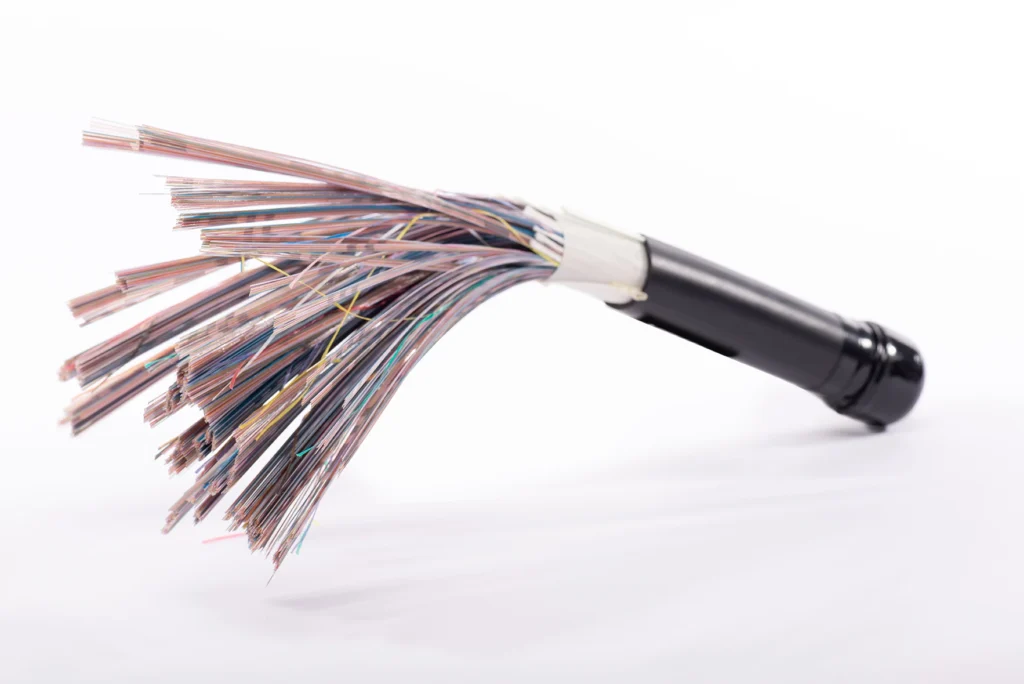

Within this landscape, Fujikura ribbon fibre cable is a distinct product, containing multiple individual fibre strands arranged side-by-side in a spiderweb ribbon-like layout. This innovative design optimises use of space and benefits installation efficiency, allowing for effortless integration into high-density environments. It proves especially beneficial in situations where space limitations are a priority concern, and it significantly mitigates the challenges associated with labour shortages during installations where speed of install is a primary consideration.
What are the benefits of ribbon fibre cable?
Enhanced space utilisation
Ribbon fibre cables contain bundles of intermittently bonded fibres, meaning more fibres in a given cable diameter, optimising space, and making them ideal for tight spaces, ducts, and conduits.
Easier installation
The organised ribbon structure streamlines deployments, reducing the effort and time required to splice and terminate.
Rapid splicing
Ribbon fibre fusion splicers allow for simultaneous splicing of multiple fibres, dramatically expediting the process.
Reduced error risk
The predetermined arrangement of fibres in the ribbon minimises the likelihood of misconnections or misalignments.
Cost efficiency
While initial costs may be higher, the overall efficiency of installation and labour savings offset this, especially for large-scale projects.
Enhanced durability
The fibre within the cable maintains spacing and alignment even under stress, improving cable reliability.
Scalability
High fibre count and efficient organisation make ribbon fibre a scalable solution that can accommodate increased data demands without substantial cable size growth.
Application range
Ribbon fibre supports a wide range of applications, from local networks to long-distance telecommunications links.

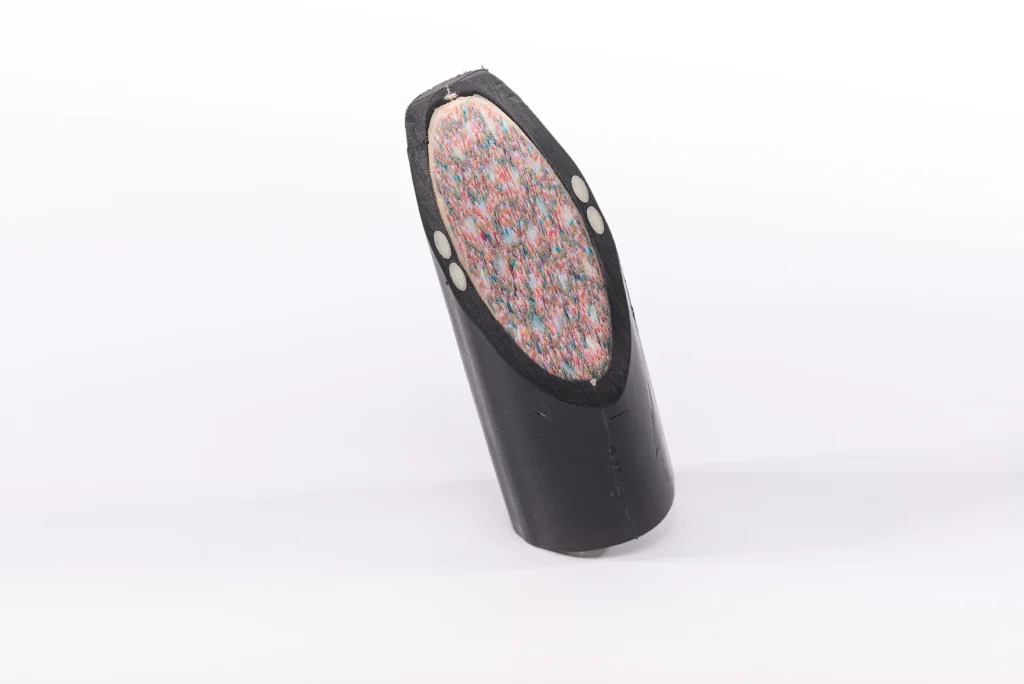

The construction of ribbon fibre cable
Fujikura’s commitment to ribbon fibre cable production is evidenced through specialist manufacturing facilities in the UK, US, and Japan. A precision manufacturing process using highly specialised equipment achieves the unique ‘spider web’ arrangement of ribbon fibres which results in our industry leading SpiderWeb Ribbon® fibre (SWR®). SWR® fibres are then integrated into our Wrapping Tube Cable (WTC).
A strength member runs throughout the jacket or sheath, endows the cable with robustness and structural integrity. Such strategic integration of strength members aligns with Fujikura’s vision for cable design, aimed at minimising the overall cable diameter.
What is ribbon cable used for?
High-capacity data transmission
Enables substantial data transmission for efficient long-distance communication.
Telecommunications backbone networks
Supports data traffic and connectivity demands in long-distance network connections.
Data centres
Provides high-speed connectivity for efficient data processing and storage within data centre environments.
Fibre-to-the-home (FTTH) deployments
Facilitates fast and efficient deployment of high-speed internet to individual homes.
Emerging technologies
Meets demands for high-capacity data transmission in technologies like 5G, IoT, and augmented reality.
Constrained spaces
Ideal for environments with limited space, like conduits, ducts, and crowded cabinets.
Efficient installation and maintenance
Simplifies installation and maintenance through streamlined ribbon arrangement.
Fusion splicing and ribbon fibre cable
The essential equipment for splicing ribbon fibre includes the Fujikura 90R mass fusion splicer, CT50 cleaver and the RS03 stripper – all of which are tailored to ribbon splicing.
The CT50 fibre cleaver features wireless data connectivity, enabling automatic cleaver blade rotation when the 90R determines that the blade is worn at a given position. Because the CT50 and 90R communicate with each other, the 90R is able to display the remaining blade life on screen and prompt the user for blade height adjustments, position changes, or replacement. For enhanced workflow efficiency, when changing splice modes on the 90R, the RS03 ribbon stripper seamlessly adapts its heating temperature and duration through a wireless command from the splicer.
Summary
In the ever-evolving landscape of fibre optics, the significance of ribbon fibre cable cannot be overstated. At the forefront of this transformative technology, Fujikura promotes innovation, driven by a commitment to quality and the continuous advancement of communication solutions. With the expanding rollout of optical fibre networks, Fujikura has developed an innovative solution which enhances installations, drives efficiency, and speed. Fujikura SpiderWeb Ribbon® fibre (SWR®), has illuminated a path to a future where installation times are reduced by an impressive 70%.
The meticulously organised ribbon structure inherent in these cables holds the key to unlocking unparalleled fibre density and streamlined installations. From FTTH connections to data centres and rail/mass transit communications, Fujikura WTC with SWR® is a cornerstone asset in project environments which prioritise fibre management and use of space. As technology advances and our world becomes increasingly interconnected, Fujikura’s WTC fibre cable will continue to boost efficiency, reliability, and innovation into modern communication.
