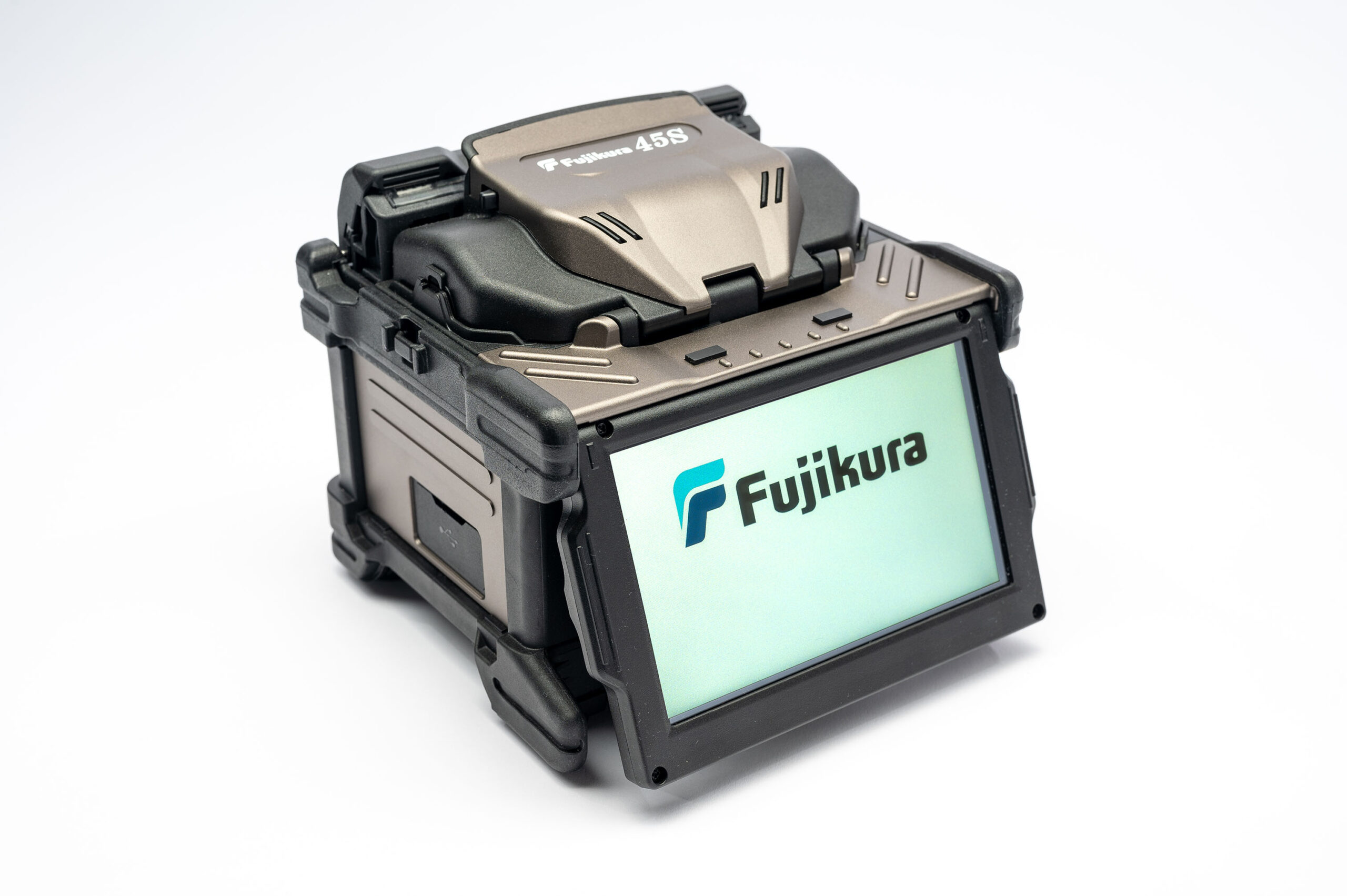

Our latest splicer is here to revolutionise your splicing workflow. The 45S is a compact cladding alignment machine with a groundbreaking feature: simultaneous fibre preparation. The dual fibre preparation system of the 45S allows you to strip two fibres at once, then cleave both fibres at the same time, before setting them in the splicer together. It’s a process which, combined with the faster heating time, ensures the 45S delivers a 30% reduction in operation cycle time compared to its predecessor.
The dual fibre preparation system is bolstered by the clever design and technology you’d expect from all Fujikura splicers and includes our market-leading Active Fusion Control and Active Blade Management Technologies. The resulting 45S is an FTTx splicer which enables you to work faster, without compromising on the quality of the splice.
45S vs. 90S+: What’s the difference?
In fast-paced FTTx deployments where swift installations are paramount, the 45S excels. Its cladding alignment technology offers a streamlined splicing process, particularly with its simultaneous fibre preparation capabilities. This translates to significant time savings, making it ideal for technicians aiming for maximum productivity. Additionally, the 45S’s affordability, user-centric design, and small footprint make it an attractive choice for a wide range of professionals whose go-to splicer is a high-quality single-fibre clad alignment machine.
For projects demanding ultimate precision and long-distance transmission, the 90S+ shines. Its core alignment technology precisely analyses the fibre cores, ensuring minimal signal loss and optimal light transmission. This thorough approach makes it ideal for high-bandwidth applications like backbone networks and submarine cable deployments. However, the 90S+ commands a higher price point and requires a deeper understanding of its advanced features for optimal use.
Selecting the correct fusion splicer is key to unlocking efficient, high-quality installations and connections. As a renowned splicer manufacturer, we have two excellent options for single-fibre work: the 45S and the 90S+. Both have impressive features, but their unique strengths cater to distinct project needs.
Ultimately, the optimal choice between the 45S and the 90S+ centres on your specific project requirements and priorities. Consider the following:
- Project type: Long-distance applications which prioritise signal fidelity often favour the 90S+, while FTTx deployments might benefit more from the 45S’s speed and efficiency.
- Budget: The 45S stands as a more cost-effective option compared to the 90S+.
- Technical expertise: The 90S+ requires a deeper understanding of its advanced features, while the 45S offers a more user-friendly experience.
The seven habits of highly effective 45S users
1. Prioritise preparation: Ensure seamless splicing by pre-placing the splice protector onto one fibre before stripping.
2. Maximise efficiency: Embrace simultaneous fibre stripping with the SS05 stripper. Tackle two 250µm fibres simultaneously for unmatched efficiency.
3. Clean properly: Impeccable fibre cleanliness is paramount for optimal splice quality. Use lint-free wipes and isopropyl alcohol, aiming for a satisfying “squeaking” sound indicating complete contaminant removal.
4. Cleave faster: Experience the efficiency of the new AD-16A fibre adapter for your CT50 cleaver. With its dual V-grooves, you can effortlessly cleave two fibres at once, significantly reducing splicing time.

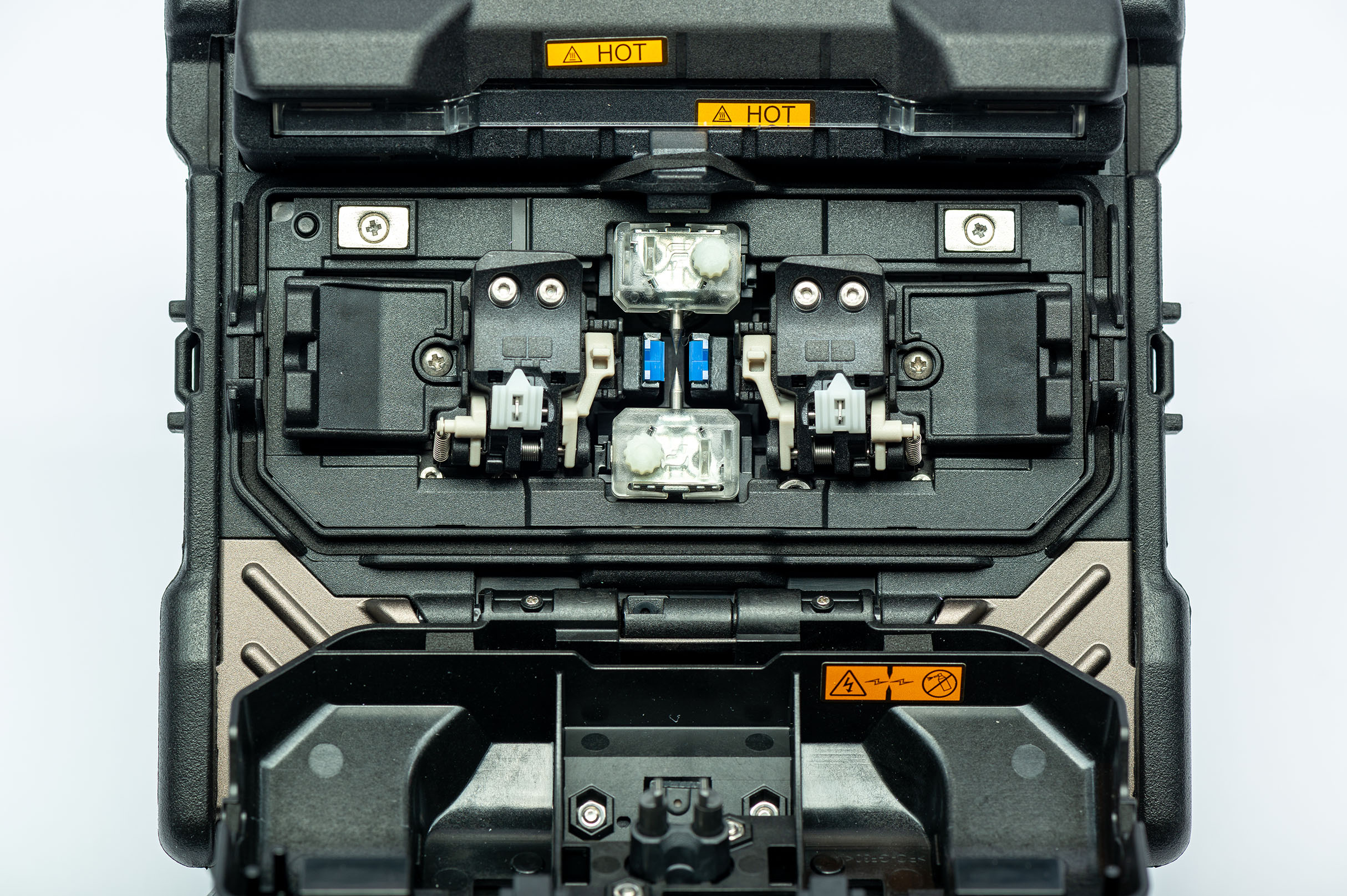

5. Set the fibres effortlessly: Maximise the 45S’s new fibre clamp mechanism. This innovative feature means the 45S closes the clamp automatically when it detects the fibre setting operation, which eliminates the need for two-handed fibre placement.
6. Transport faster: Because the 45S’s wind protector and fibre clamps are linked when the wind protector opens, so do the fibre clamps, meaning easy fibre handling and faster transport to the heater.
7. Secure and protect: Slide the splice protector down the fibre to encapsulate the splice point and use the new heater featuring 15% faster heating for final protection and stabilization.
Summary
The 45S delivers speed, efficiency, and precision like never before. Here are the highlights:
- Effortlessly prepare both fibres at the same time – which contributes to a 30% total faster operation time.
- Set the fibres in the machine with one hand each thanks to the 45S’s automated clamp mechanism.
- Know that every splice is optimised by Fujikura technology which contributes to consistent stable, low-loss results and high-quality cleaves.
- Enjoy a 15% faster heat shrink cycle to protect your splices in record time.
In this blog, we unveiled the 7 essential steps to mastering the 45S and achieving flawless splices every time. From pre-cleaving prep to the final heat shrink, you are now able to enjoy the faster experience of this small but powerful splicer.
Experience the Fujikura 45S firsthand – email us to book a demo. Our experts will guide you through its features and answer any questions you may have. For further information on fibre splicing, or to learn more about our products and services, get in touch using the form below.
