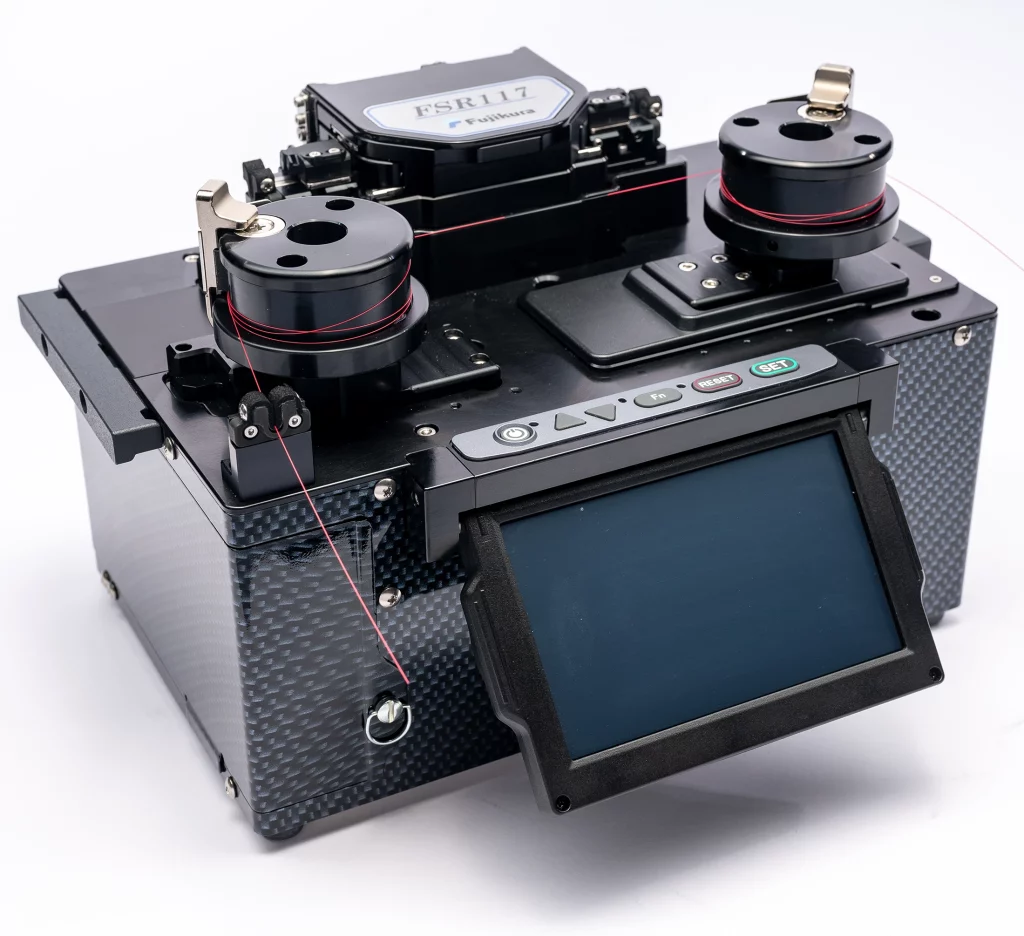

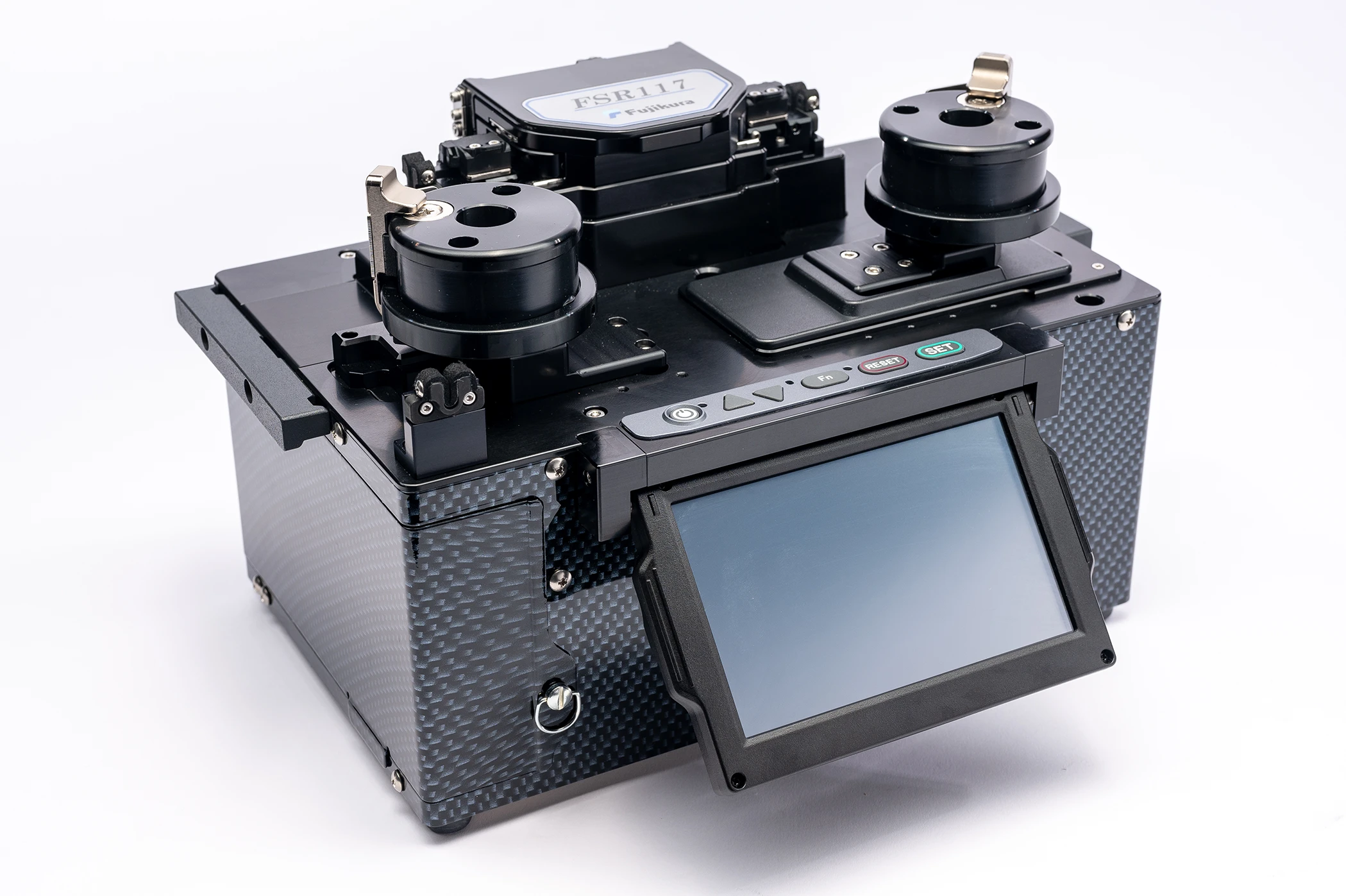

FSR117
Optical fibre recoater with mandrel proof tester
Boost your efficiency and accuracy for demanding low-index and long recoat applications.
xxxxx
The FSR117 is a high-quality optical fibre recoater, used to recoat the primary coating of an optical fibre
In applications with flexible packaging requirements, high strength and high reliability splices, softer coatings for gyroscope splices, low-index coatings for power delivery and more.
Our latest recoaters improve on their respective predecessors in numerous ways. The time to inject recoat material has been reduced by over 50% due to an improved pumping mechanism and new glass mould design. While still utilizing quartz glass, the new mould design improves both pump time and recoat length accuracy, especially for longer recoats, by improving the flow rate of material across the entire mould. The mould also features a unique RFID capability, enabling the FSR to automatically limit selectable recoat modes in the UI, based on mould size installed and recoat mode parameters
Like its predecessor, the FSR117 comes with a mandrel proof tester up to 10 kgf or proof to failure for most fibres.
Applications
Our optical fibre recoaters benefit a variety of specialty fibre optic industries including:
- Universities
- R&D optical institutes
- High power laser
- Photonics industries
- Medical applications
Key Features
Proof testing
The FSR117 benefits from a manderel proof tester wich can deliver up to 10 kgf force.
New pumping mechanism
Thanks to a new fast pumping mechanism, the FSR117 has a shorter UV resin injection time compared to the model it replaces.
Ease of use
Easy user exchangeable mould, inserts and shims for precise concentricity in any application. RFID equipped moulds allow the FSR115 to suggests the most appropriate recoat mode.
Technical specification
FSR117
Optical fibre recoater with mandrel proof tester
APPLICABLE OPTICAL FIBRE
Single-fibre
APPLICABLE FIBRE COATING DIAMETER
0.09mm to 0.97mm
RECOAT DIAMETER
Approx. 0.195mm, Approx. 0.225mm, Approx. 0.28mm, Approx. 0.32mm, Approx. 0.45mm, Approx. 0.6mm, Approx. 0.67mm, Approx. 0.85mm and Approx. 1mm
RECOAT LENGTH
4mm to 50mm [1]
Recoat length accuracy ±20% [2]
APPLICABLE UV-CURING RESIN
Japan Fine Coating Co., Ltd. 950Y200 and Luvantix AMD Ltd. PC-373LD [3]
UV CURING RESIN SUPPLY SYSTEM
A built-in pump supplies UV curing resin to the recoat mold from a replaceable built-in bottle [4]
UV CURING RESIN INJECTION TIME
950Y200: Approx. 4 seconds [2]
PC-373LD: Approx. 10 seconds [2]
PROOF MECHANISM
Equipped with mandrel proof testing mechanism
FIBRE CLAMP METHOD
Mandrel clamp
SETTABLE PROOF FOR RANGE
0.2kgf to 10.0kgf
DIMENSIONS
252mm [W] x 175mm [D] x 169mm [H]
WEIGHT
5kg
OPERATING TEMPERATURE
10°C to 30°C
OPERATING HUMIDITY
0 to 95% RH non-condensing
OPERATING STORAGE
-40°C to 80°C
OPERATING HUMIDITY
0 to 95% RH non-condensing
AC ADAPTER
Input: AC100 to 240V, 50/60Hz, Max. 1.5A
Output: Approx. DC 19V, Max. 2.1A

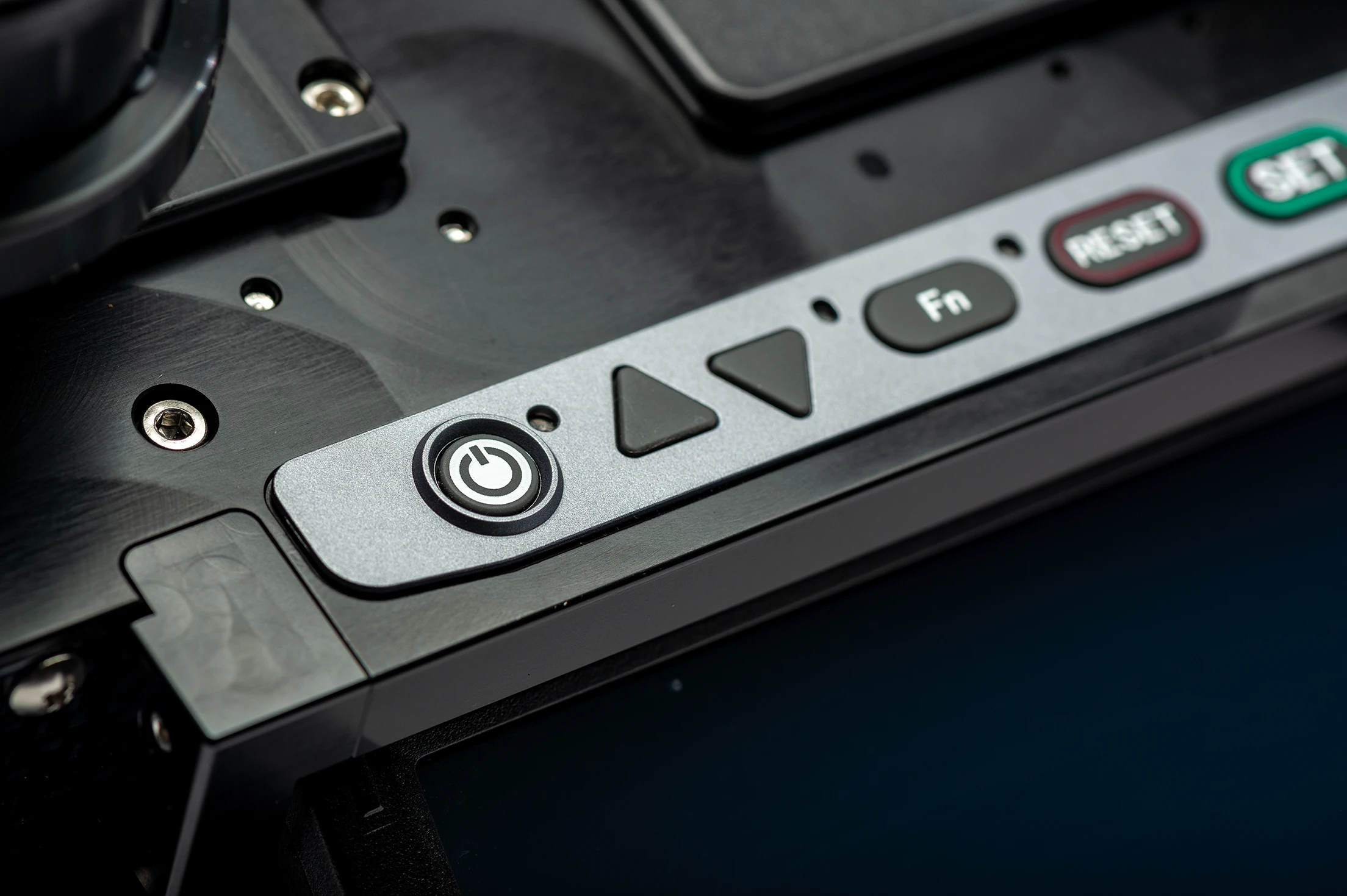

DISPLAY
4.95-inch colour TFT touch screen
INTERFACE
PC: USB 2.0 Mini B type
Earth Terminal: Applicable by M3 size truss screw
WIRELESS COMMUNICATION
RFID: Compliant with ISO 15693
RECOAT MODE
100 recoat modes
RECOAT RESULTS
5,000 recoats
RECOAT TEST RESULTS
5,000
PROOF TEST MODE
30 proof modes

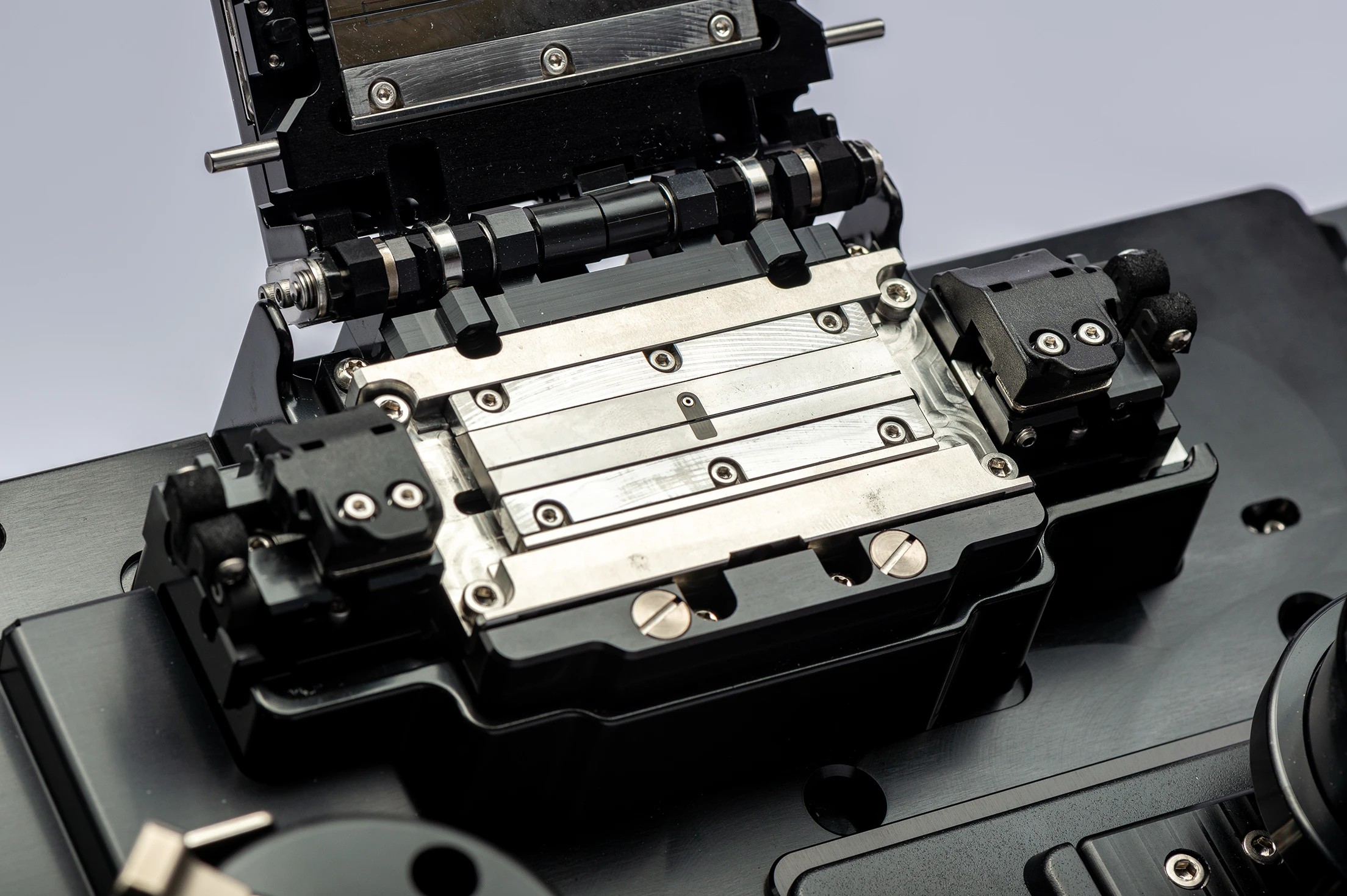

MOULD
Recoat length stabilising mechanism, alignable clamp position according to fibre eccentricity between coating centre and clad centre, replaceable by user, illuminates the flowing UV curing resin on the groove to advance resin visibility, RFID tab identifies the type of recoat mould.
SOFTWARE FOR PC
Recoater firmware update via the internet, parameter upload and download
PROOF FORCE CALIBRATION
Enable [5]
NOTES
[1] The recoat length may not achieve to the setting value, depending on the combination of recoat diameter and fibre coating diameter, ambient temperature, etc. [2] Test condition – (1) UV recoat Resin: Japan Fine Coatings Co., Ltd. 950Y200 or Luvantix ADM Ltd. PC-373LD (2) Recoat diameter: 0.28mm (3) Recoat length: 20mm (4) Fibre: Clad diameter 0.125mm/transparent UV 0.25mm coating diameter, coating stripping length 16mm (5) Environment condition: 25°C [3] Purchase the UV curing resin from UV curing resin local distributors. Fujikura doesn’t sell UV-curing resin. [4] Ask the distributor to replace the built-in pump. [5] FGA-02 and specified force gauge, FGP-20 manufactured by Nidec-Shimpo Co., Ltd. are necessary.
